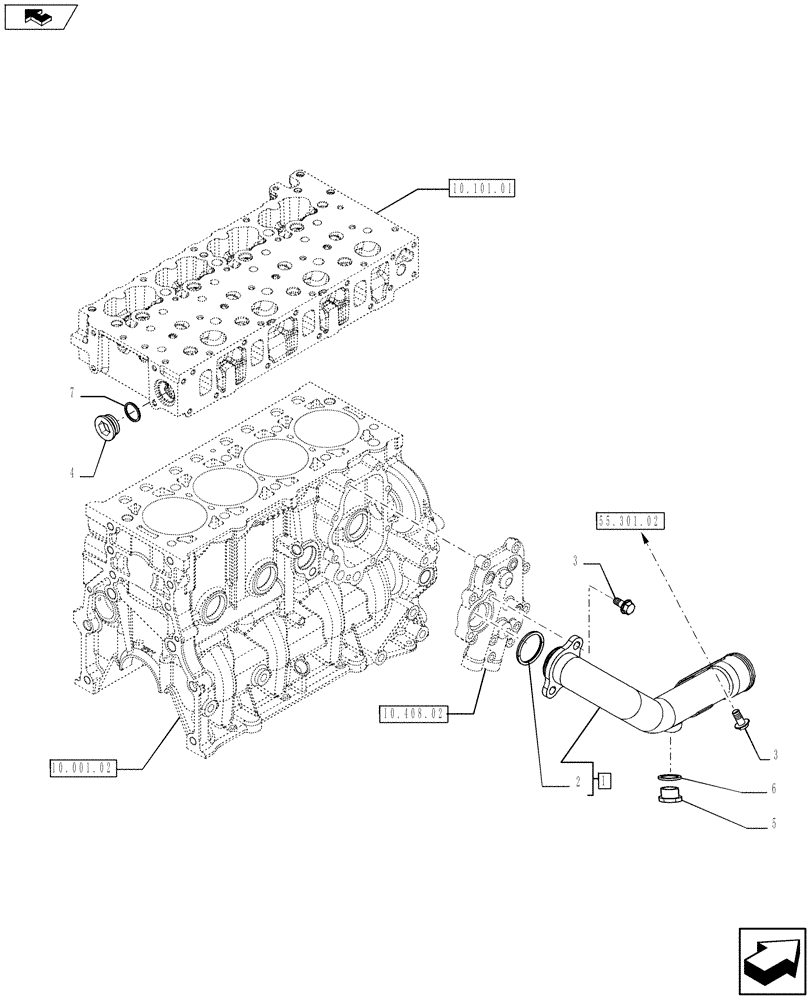

Запчасти Case IH F5AE9484G A010 (10.402.03) - PIPING - ENGINE COOLING SYSTEM (5801388639) (10) - ENGINE

1

504303868

PIPE

ASSY

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D = 31.34 x 3.53 mm

1шт.

3

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

3шт.

4

16993711

PLUG,M35 x 1.5

M35 x 1.5

1шт.

5

16992511

PLUG

1шт.

6

2852802

SEALING WASHER

D = 18 x 22 mm Thk = 1,5 mm

1шт.

7

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

1шт.
