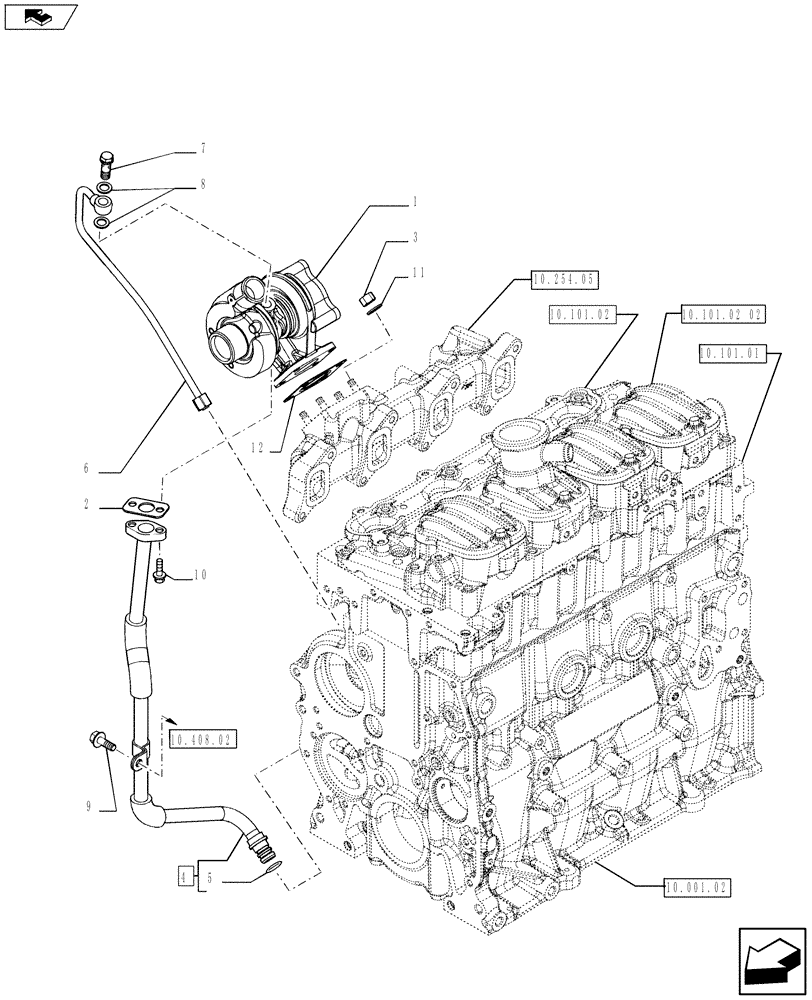

Запчасти Case IH F5AE9484G A010 (10.250.01 01) - TURBOCHARGING (5801375784) (10) - ENGINE

1

504265216

TURBOCHARGER

1шт.

2

500370706

GASKET

1шт.

3

500322677

NUT,M8

FLANGE NUT

4шт.

4

5801375819

SUCTION PIPE

ASSY

1шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

D = 13.9 mm Thk = 2.6 mm

1шт.

6

504164224

PIPE

1шт.

7

4864080

BANJO BOLT,M10 x 1.25

M10 x 1.25

1шт.

8

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

2шт.

9

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

1шт.

10

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 20

2шт.

11

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

8.4 x 16

4шт.

12

4899343

GASKET,0.45mm Thk

1шт.
