Запчасти Case IH F5AE9484G A006 (0431.018) - FRONT C.CASE COVER

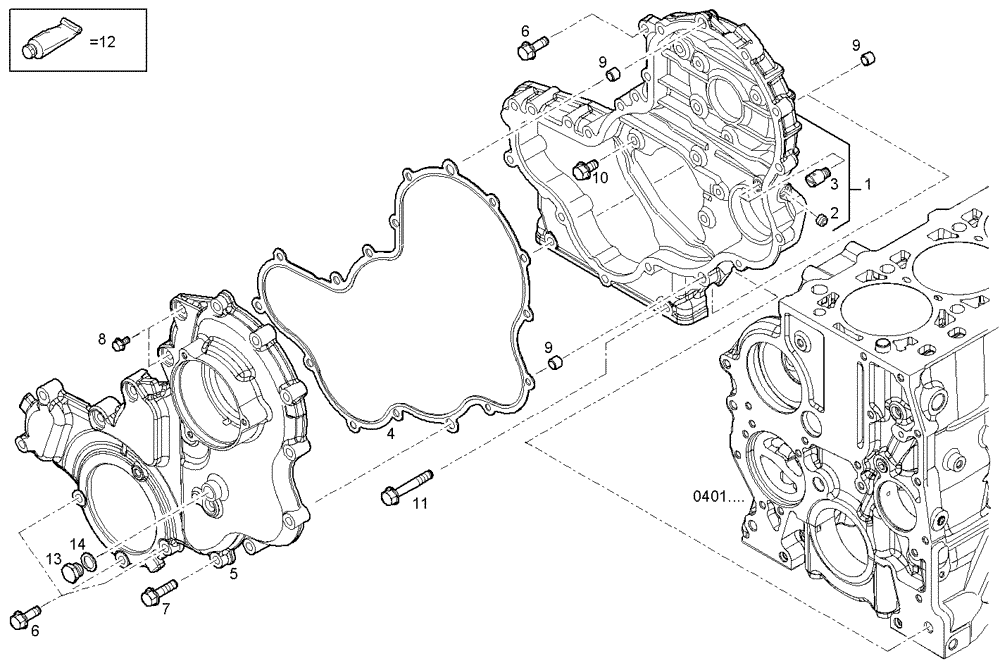

Схема запчастей Case IH F5AE9484G A006 - (0431.018) - FRONT C.CASE COVER

Артикул

Название

Примечание

Количество

1

504244657

HOUSING

TIMINGGEAR HOUSIN

1шт.

2

504051236

PLUG,Threaded, 1/8"

THREADED PLUG, DIAM=1/8"

1шт.

3

504204989

LUBE OIL NOZZLE

OIL NOZZLE

1шт.

4

504244659

GASKET

FLAT ENGINE GASKET

1шт.

5

504244660

COVER

FRONT C.CASE COVER

1шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

4шт.

7

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

13шт.

8

4798845

BOLT,M8 x 1.25 x 16.50mm

SCREW

2шт.

9

99435557

DOWEL,8.50mm Dia

DOWEL PIN, dia=8,5 MM

4шт.

10

98401723

BOLT,Hex, M8 x 1.25 x 12mm

HEXAGON BOLT, M8X1,25X12 MM

5шт.

11

16586925

BOLT,M8 x 50mm

HEXAGON BOLT, M8X50 MM

6шт.

12

2992545

LOCTITE

ADHESIVE/STICKER

1шт.

13

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

LOCK PLUG, M14X1,5

1шт.

14

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

SEAL GASKET, dia.14x19,5x1,5

1шт.

Выбрано товаров: 14
