(0435.034) - FLYWHEEL HOUSING

Запчасти Case IH F5AE9484B A002 (0435.034) - FLYWHEEL HOUSING

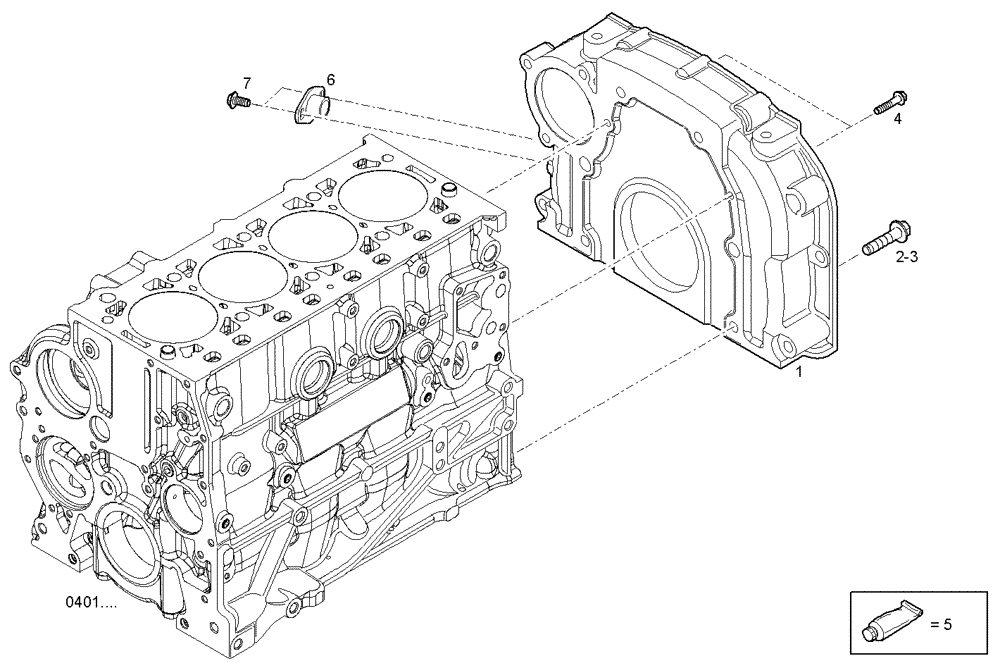

Схема запчастей Case IH F5AE9484B A002 - (0435.034) - FLYWHEEL HOUSING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504180348

HOUSING

FLYWHEEL HOUSING

1шт.

2

16678034

BOLT,Hex, M12 x 40mm

HEXAGON BOLT, M12X40 MM

6шт.

3

16588225

BOLT,Hex, M12 x 1.75 x 40mm

HEXAGON BOLT, M12X40 MM

6шт.

4

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

5

2992545

LOCTITE

ADHESIVE/STICKER

1шт.

6

504265766

PLATE

CONNECTING PLATE

1шт.

7

4798845

BOLT,M8 x 1.25 x 16.50mm

SCREW

2шт.
