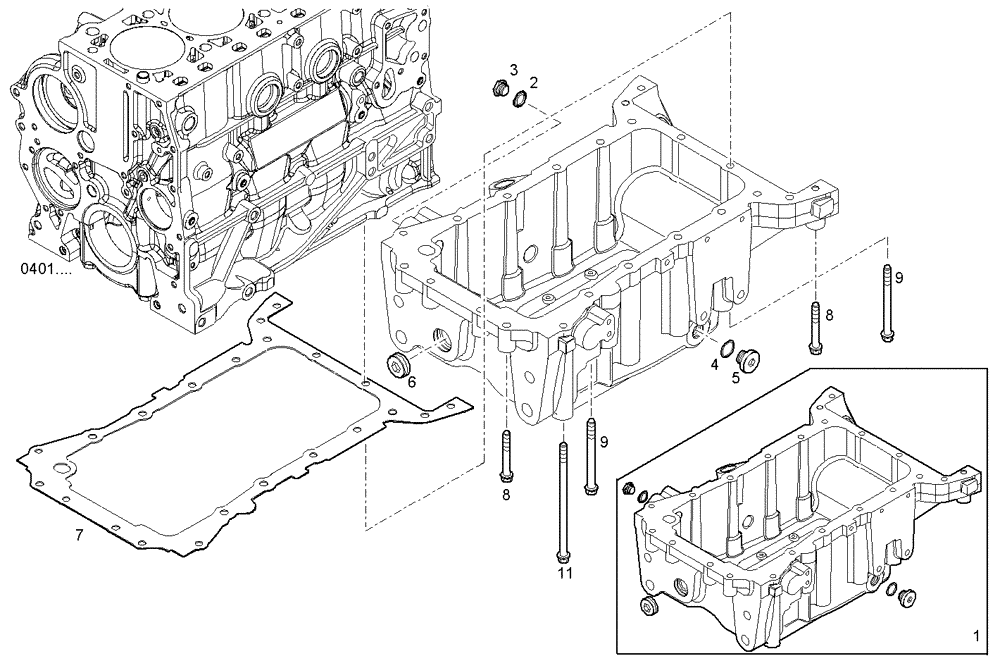

Запчасти Case IH F5AE9484B A002 (0420.250) - OIL SUMP

1

504248412

SUMP

OIL SUMP

1шт.

2

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

3

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

4

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

O-RING, dia=2,62X23,47 MM

2шт.

5

4894139

PLUG,Hex Soc, M22 x 1.5

THREADED PLUG, M22X1,5

2шт.

6

16995111

PLUG,M35 x 1.5

THREADED PLUG, M35X1,5

1шт.

7

504164360

GASKET

OIL SUMP GASKET

1шт.

8

16676534

BOLT,M10 x 55mm

HEXAGON BOLT, M10X55 MM

8шт.

9

16677235

BOLT,M10 x 110mm

HEXAGON BOLT, M10X110 MM

4шт.

10

16676934

SCREW,M10 x 1.5 x 80mm

HEXAGON BOLT, M10X1,5X80 MM

2шт.

11

16599424

SCREW,M10 x 180mm

HEXAGON BOLT, M10X180 MM

8шт.
