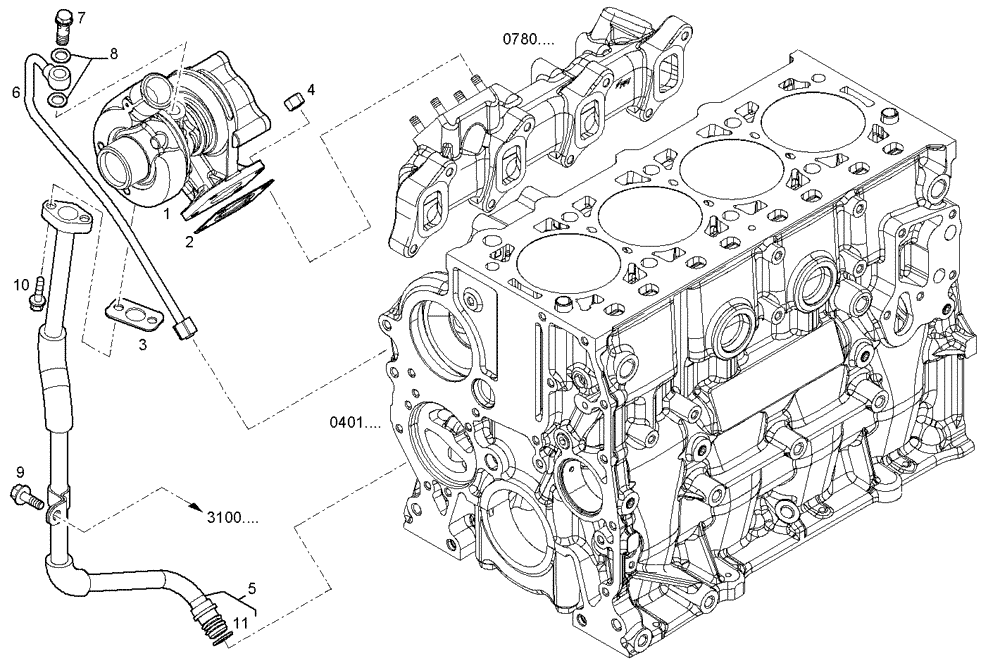

Запчасти Case IH F5AE9484A A004 (2400.298) - TURBOCHARGER (10) - ENGINE

1

504242763

TURBOCHARGER

TURBOCHARGER

1шт.

1

504242763R

REMAN-TURBOCHARGER

1шт.

1

504242763C

CORE-TURBOCHARGER

Return Number

1шт.

2

4899343

GASKET,0.45mm Thk

EXH. MANIFOLD GKT

1шт.

3

500370706

GASKET

FLAT ENGINE GASKET

1шт.

4

500322677

NUT,M8

HEXAGON NUT, M8

4шт.

5

504164226

PIPE

OIL LINE, OUTLET

1шт.

6

504164224

PIPE

OIL LINE, INLET

1шт.

7

4864080

BANJO BOLT,M10 x 1.25

SCREW CONNECTOR, M10X1,25

1шт.

8

17750480

SEAL,12.2mm ID x 17.8mm OD x 1.5mm Thk

GASKET

2шт.

9

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

HEXAGON BOLT, M8X1,25X16 MM

1шт.

10

18137825

BOLT,Hex, M6 x 16mm

HEXAGON BOLT, M6X16

2шт.

11

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, dia=13,9 MM SP=2,6 MM

1шт.
