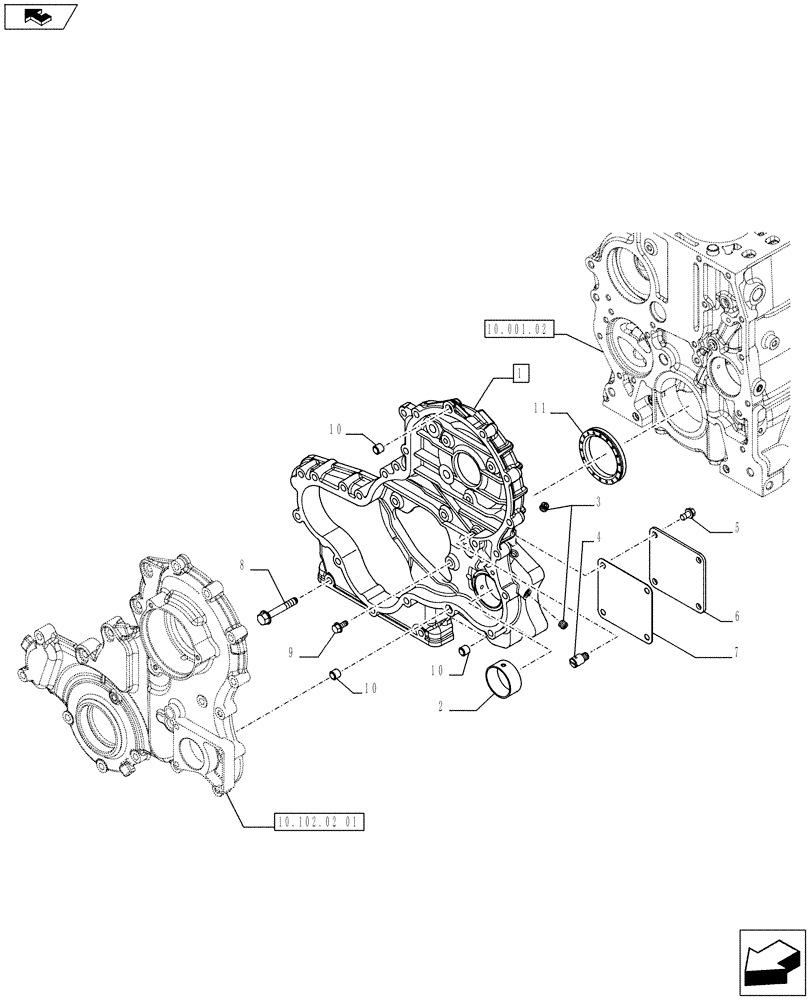

Запчасти Case IH F5AE9454K A002 (10.102.02[02]) - CYLINDER BLOCK, HOUSING, FRONT (10) - ENGINE

1

504240750

HOUSING

ASSY, Contains Ref. 2-4

1шт.

2

504242802

BUSHING

2шт.

3

504051236

PLUG,Threaded, 1/8"

D=1/8"

3шт.

4

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

5

2852101

FLANGE BOLT,Hex, M6 x 16mm

4шт.

6

2853841

COVER

1шт.

7

504320425

PLATE

1шт.

8

2855301

SCREW,Hex, M8 x 1.25 x 50mm

M8 x 50

6шт.

9

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M8 x 1.25 x 12

5шт.

10

2852481

DOWEL,8.5mm ID

D = 8.5 mm

4шт.

11

504187305

SHAFT SEAL

1шт.
