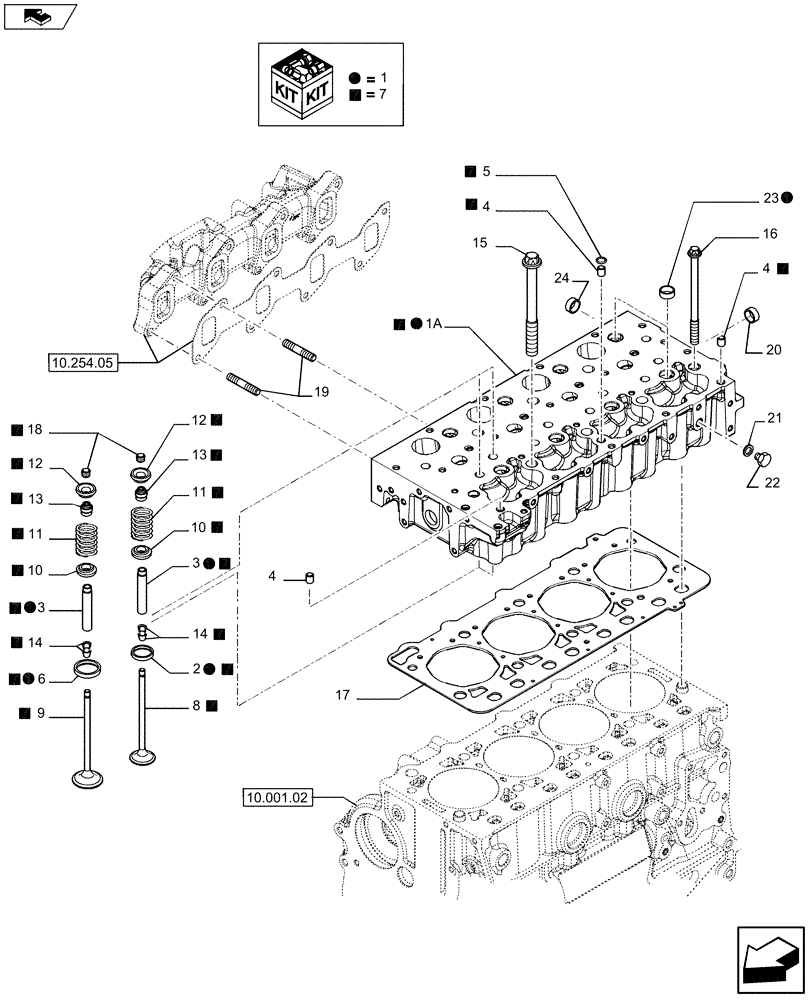

Запчасти Case IH F5AE9454J A002 (10.101.01) - CYLINDER HEAD (10) - ENGINE

1

5801371406

CYLINDER HEAD,4 Cylinder

ASSY

1шт.

1

47573589R

REMAN-CYLINDER HEAD

Cylinder Head Includes Valves

1шт.

1

47573589C

CORE-CYLINDER HEAD

Return Number

1шт.

2

504162949

VALVE SEAT

4шт.

3

4749397

VALVE GUIDE,Std

+0.05 mm

8шт.

3

4749398

VALVE GUIDE,+0.10

+0.1 mm

8шт.

3

4749399

VALVE GUIDE,+0.2

+0.25 mm

8шт.

4

99435557

DOWEL,8.50mm Dia

D = 8.5 mm

3шт.

5

17281481

O-RING,10.7mm ID x 2.6mm Width

D = 10.7 mm Thk = 2.6 mm

1шт.

6

504254094

VALVE SEAT

4шт.

7

16988301

PLUG,Lock, 20mm Dia

D = 20 mm

8шт.

8

504162958

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

9

504162959

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

10

504178119

RETAINER CUP

8шт.

11

4812347

SPRING

8шт.

12

4780558

CUP

8шт.

13

40101573

SEAL

8шт.

14

4819891

ROCKER ARM COTTER,7.85mm Dia

D = 7.85 mm

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

M15 x 1.5 x 193

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

M12 x 1.5 x 165

4шт.

17

504190831

CYLINDER HEAD GASKET

1шт.

18

4838680

CAP

8шт.

19

500380521

STUD,M5 x 12 x 45mm

M8 x 12 x 45

8шт.

20

16990970

PLUG,Lock, 30mm Dia

1шт.

21

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

22

2856546

PLUG

M12 x 1,5

1шт.

23

16990970

PLUG,Lock, 30mm Dia

1шт.

24

16990670

PLUG,Lock, 22mm Dia

4шт.
