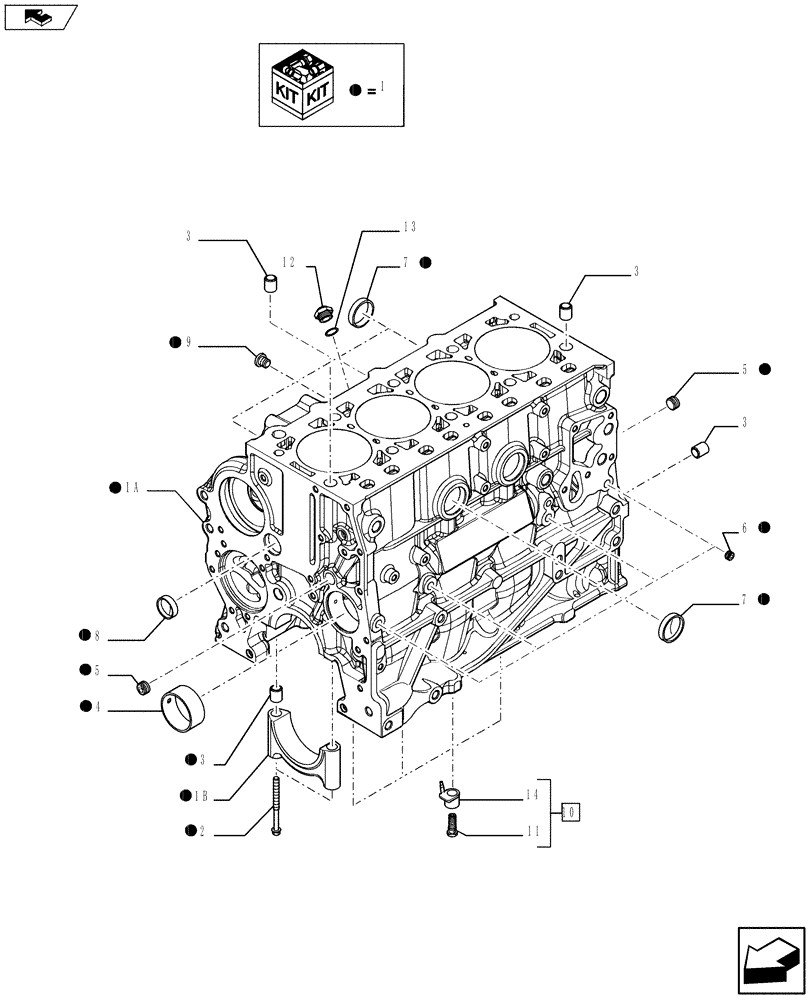

Запчасти Case IH F5AE5484C A002 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

5801372159

CRANKCASE

ASSY, Contains Ref. 1A, 1B, 2 - 9

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

1b

NSS

NOT SOLD SEPARAT

4шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

5

16988101

PLUG

D = 3/8"

3шт.

6

504138060

PLUG

D = 1/8"

4шт.

7

14329901

PLUG,M40, Tapered

6шт.

8

16990970

PLUG,Lock, 30mm Dia

D = 30 mm

1шт.

9

504016052

PLUG,M14 x 1.5

M14 x 1.5

1шт.

10

504156515

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.

11

NSS

NOT SOLD SEPARAT

4шт.

12

504356829

PIPE FITTING,M14 x 1.5

1шт.

13

504077652

SEALING WASHER,13mm ID x 19mm OD

1шт.

14

NSS

NOT SOLD SEPARAT

4шт.
