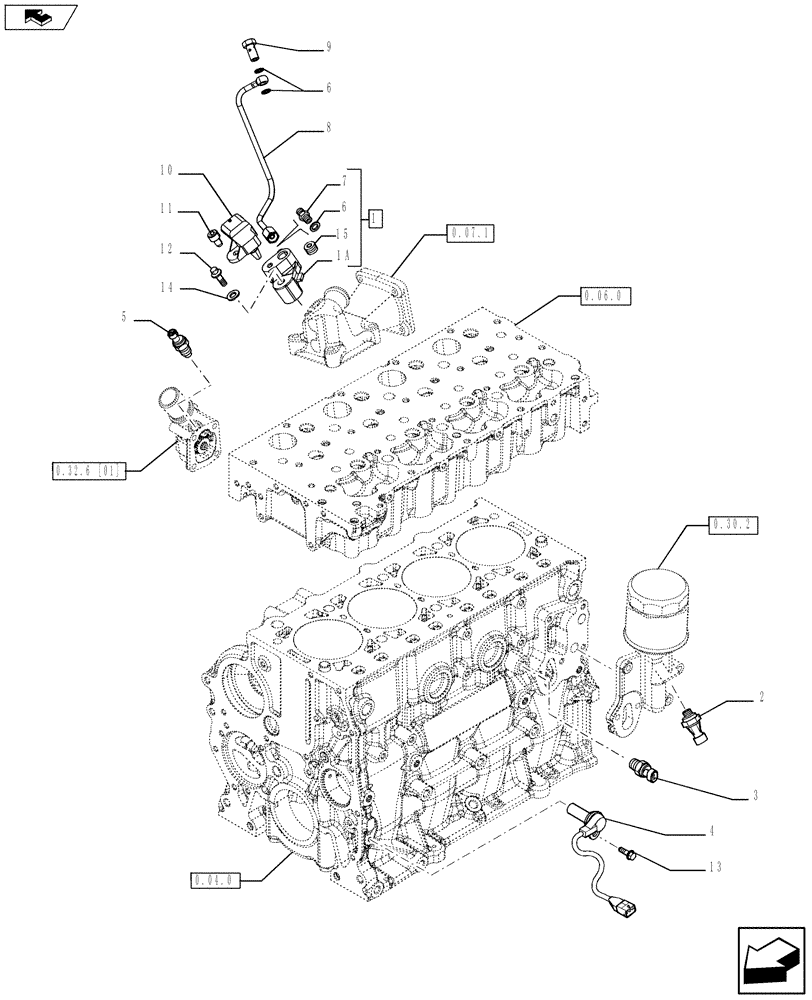

Запчасти Case IH F5AE5484C A001 (0.70.0) - DIAGNOSTIC SENSOR (55) - ELECTRICAL SYSTEMS

1

504307972

ASSY Contains Ref.1A, 6, 7, 15

SUPPORT

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

2852889

PRESSURE SWITCH

1шт.

3

504273290

SENSOR

Water temperature KSB

1шт.

4

4897242

SENSOR

Crankshaft

1шт.

5

2852157

SENSOR

Water

1шт.

6

10260150

SEALING WASHER,M10.2 x 14 x 1, Alum

3шт.

7

41905549

HYD CONNECTOR

1шт.

8

504384857

TUBE

1шт.

9

16511111

BANJO BOLT

1шт.

10

504245257

SENSOR

1шт.

11

16689121

SCREW,Skt Hd, M6 x 16mm

M6 x 16

1шт.

12

16592625

SCREW,M8 x 80mm

1шт.

13

504065023

SCREW,M6 x 16mm, Cl 8.8

M6X12 mm

1шт.

14

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

15

16988101

PLUG

1шт.
