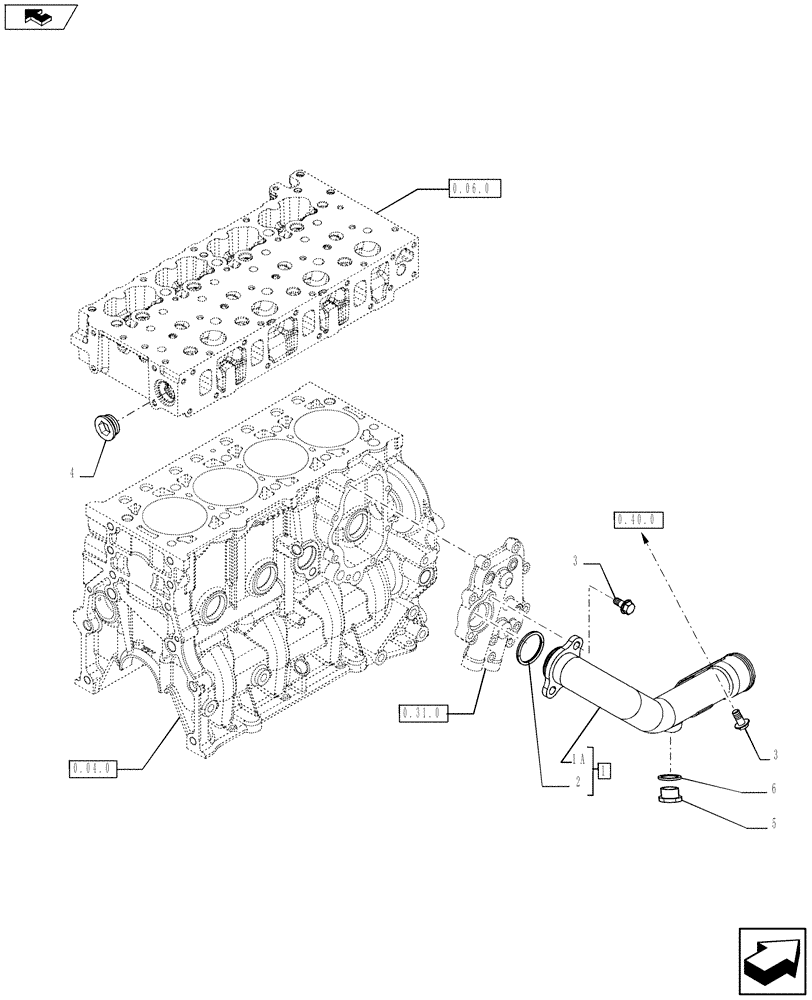

Запчасти Case IH F5AE5484C A001 (0.32.3) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

1

504303868

PIPE

ASSY Contains Ref.1A, 2

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D = 31.34 x 3.53 mm

1шт.

3

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

3шт.

4

16993711

PLUG,M35 x 1.5

M35 x 1.5

1шт.

5

16992511

PLUG

1шт.

6

2852802

SEALING WASHER

D = 18 x 22 mm Thk = 1,5 mm

1шт.
