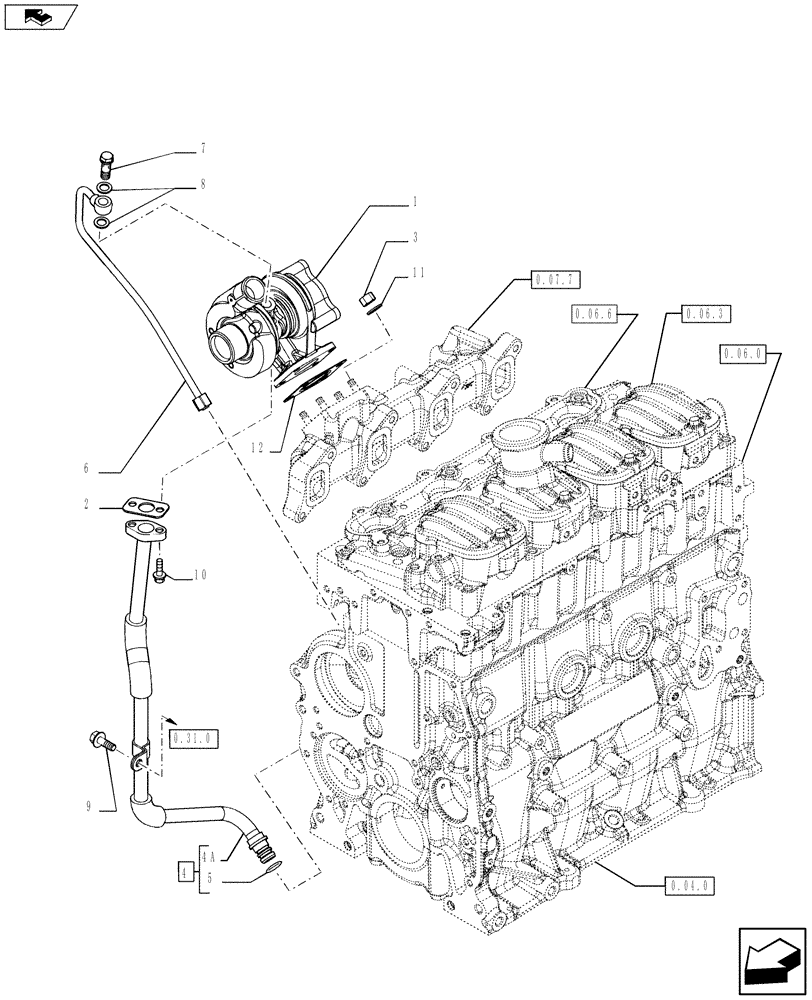

Запчасти Case IH F5AE5484C A001 (0.24.0) - TURBOCHARGING (10) - ENGINE

1

504265216

TURBOCHARGER

1шт.

2

500370706

GASKET

1шт.

3

500322677

NUT,M8

FLANGE NUT

4шт.

4

5801375819

SUCTION PIPE

ASSY

1шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

D = 13.9 mm Thk = 2.6 mm

1шт.

6

504164224

PIPE

1шт.

7

4864080

BANJO BOLT,M10 x 1.25

M10 x 1.25

1шт.

8

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

2шт.

9

16586225

BOLT,M8 x 16mm

1шт.

10

18137825

BOLT,Hex, M6 x 16mm

M6 x 20

2шт.

11

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

8.4 x 16

4шт.

12

4899343

GASKET,0.45mm Thk

1шт.
