Запчасти Case IH F5AE5484C A001 (0.08.2) - PISTON - ENGINE (10) - ENGINE

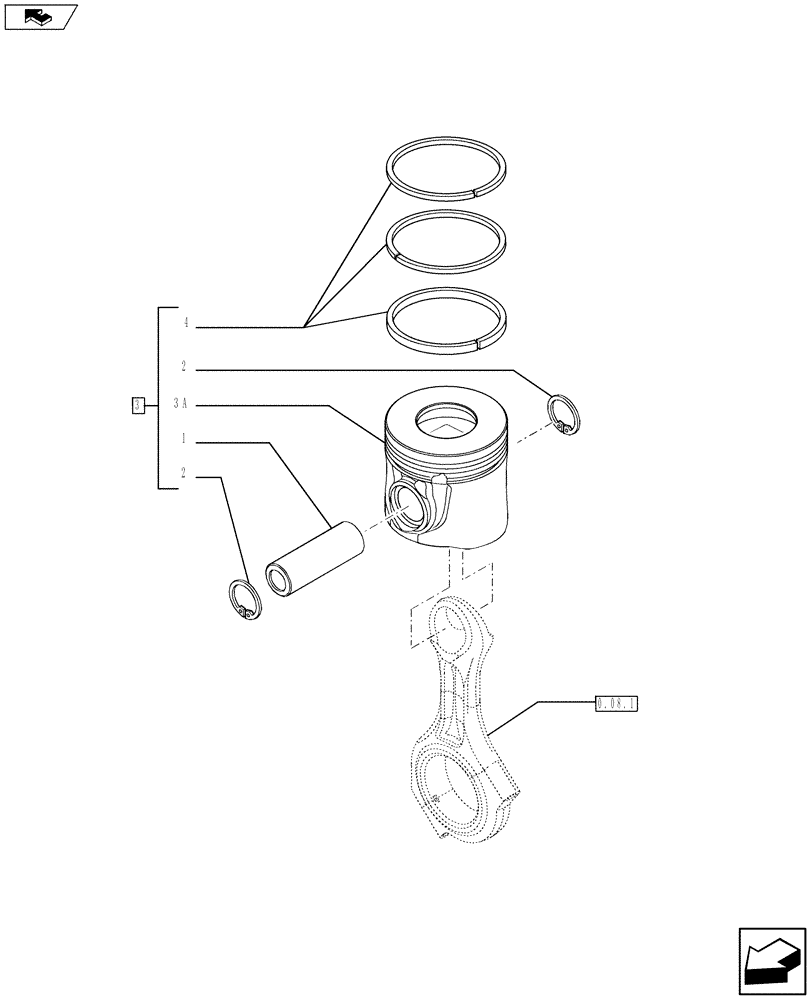

Схема запчастей Case IH F5AE5484C A001 - (0.08.2) - PISTON - ENGINE (10) - ENGINE
4
0.08.1
3
3a
1
2
2
home

Артикул

Название

Примечание

Количество

1

504047720

PISTON PIN

4шт.

2

504051611

LOCK WASHER

8шт.

3

8097546

PISTON ASSY

+ 0.0 Contains Ref.1, 2, 3A, 4

4шт.

3

8097548

PISTON ASSY +0.4

Contains Ref.1, 2, 3A, 4

4шт.

3

8097915

PISTON ASSY

Contains Ref.1, 2, 3A, 4

4шт.

3

8097916

PISTON ASSY +0.4

Contains Ref.1, 2, 3A, 4

4шт.

3a

NSS

NOT SOLD SEPARAT

4шт.

4

8097545

PISTON RING SET

+ 0.0

4шт.

4

8097547

SET,PISTON RINGS+0.4

SET OF PISTON RINGS +0.4

4шт.

Выбрано товаров: 9
