Запчасти Case IH F5AE5484B A001 (0.04.3[01]) - ENGINE BLOCK FRONT COVER (10) - ENGINE

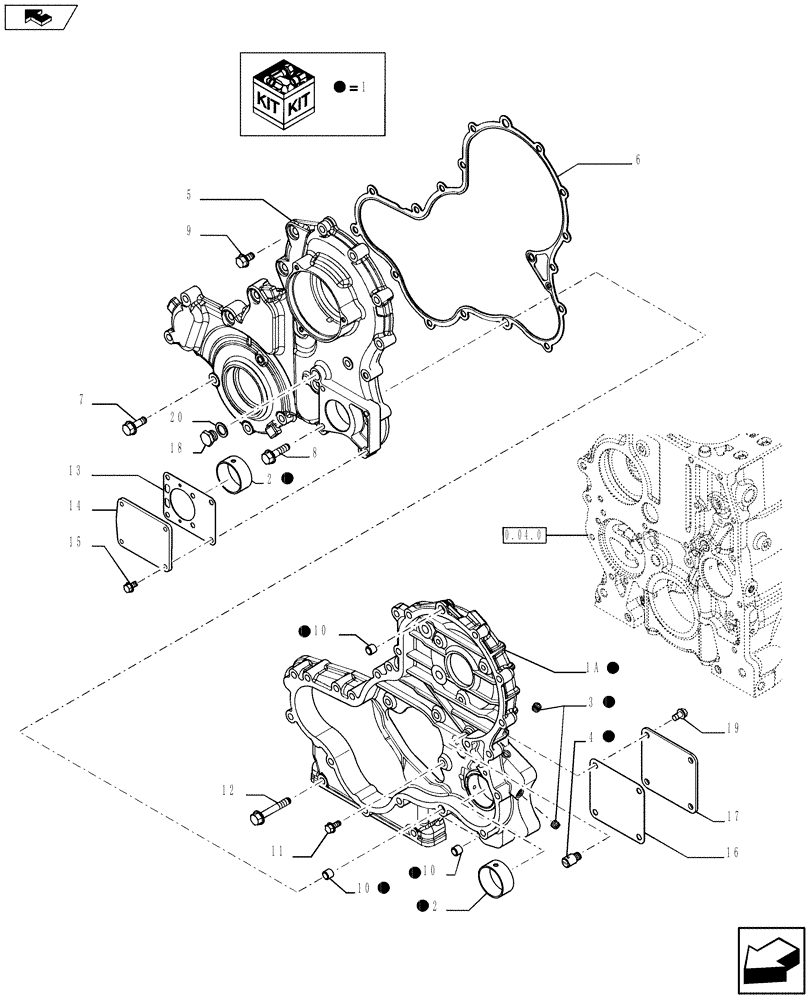

Схема запчастей Case IH F5AE5484B A001 - (0.04.3[01]) - ENGINE BLOCK FRONT COVER (10) - ENGINE
19
2
1
10
1
8
1
10
1
1
5
9
4
7
3
0.04.0
1
11
1
20
1
1
17
1
18
6
16
1a
13
home
2
10
15
14
12

Артикул

Название

Примечание

Количество

1

504240750

HOUSING

ASSY Contains Ref.1A, 2, 3, 4, 10

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

504242802

BUSHING

2шт.

3

504051236

PLUG,Threaded, 1/8"

D = 1/8"

3шт.

4

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

5

504240754

COVER

1шт.

6

504242801

GASKET

1шт.

7

16673735

BOLT,Hex, M8 x 1.25 x 25mm

4шт.

8

16586625

BOLT,M8 x 35mm

M8 x 35

15шт.

9

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

10

99435557

DOWEL,8.50mm Dia

D = 8.5 mm

4шт.

11

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M8 x 1.25 x 12

5шт.

12

16586925

BOLT,M8 x 50mm

M8 x 50

6шт.

13

504092108

GASKET

1шт.

14

564530

COVER

1шт.

15

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

4шт.

16

504320425

PLATE

1шт.

17

2853841

COVER

1шт.

18

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

19

18137825

BOLT,Hex, M6 x 16mm

4шт.

20

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

D = 14 x 20 x 1.5 mm

1шт.

Выбрано товаров: 21
