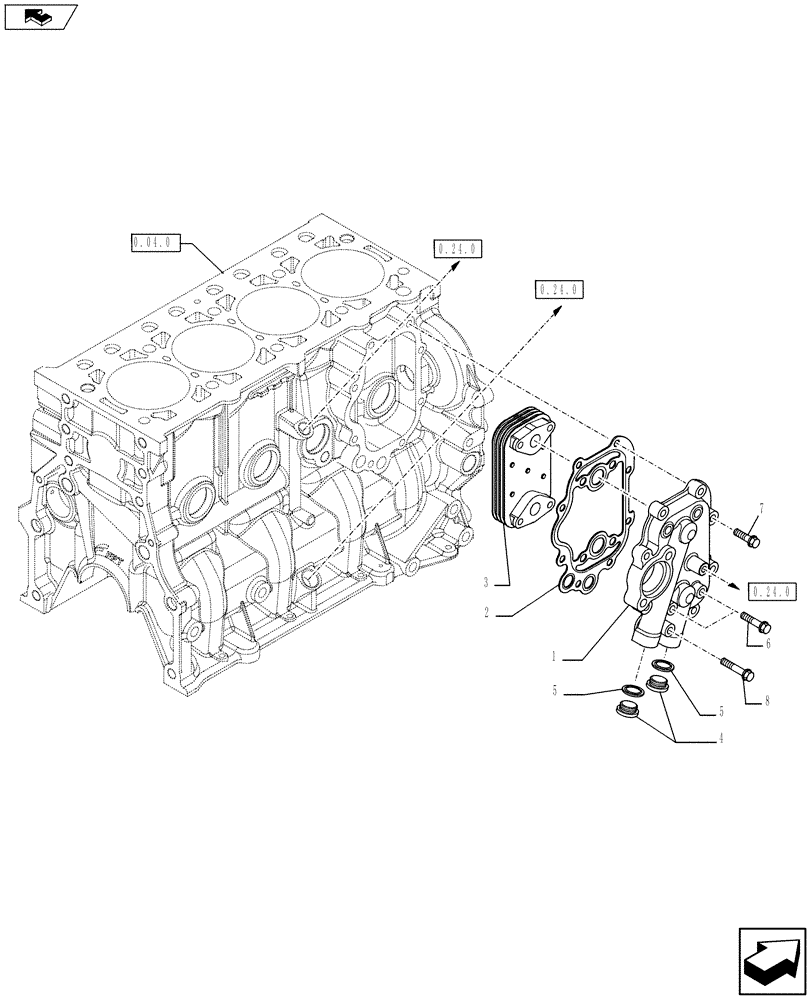

Запчасти Case IH F5AE5484B A001 (0.31.0) - HEAT EXCHANGER (10) - ENGINE

1

504155542

BODY

1шт.

2

504155544

GASKET

1шт.

3

504164307

OIL COOLER

1шт.

4

10275011

PLUG,M22 x 1.5 x 13

M22X1,5 mm

2шт.

5

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D. 22 mm

2шт.

6

16586724

SCREW,M8 x 1.25 x 40mm

M8 x 1.25 x 40

2шт.

7

16586524

FLANGE BOLT,Hex Flat Hd, M8 x 1.25 x 30mm, Cl 8.8

M8 x 30

9шт.

8

16586924

BOLT,Hex, M8 x 50mm

M8 x 50

1шт.
