(10.102.02) - ENGINE BLOCK FRONT COVER (504180166)

Запчасти Case IH F5AE5484A A002 (10.102.02) - ENGINE BLOCK FRONT COVER (504180166) (10) - ENGINE

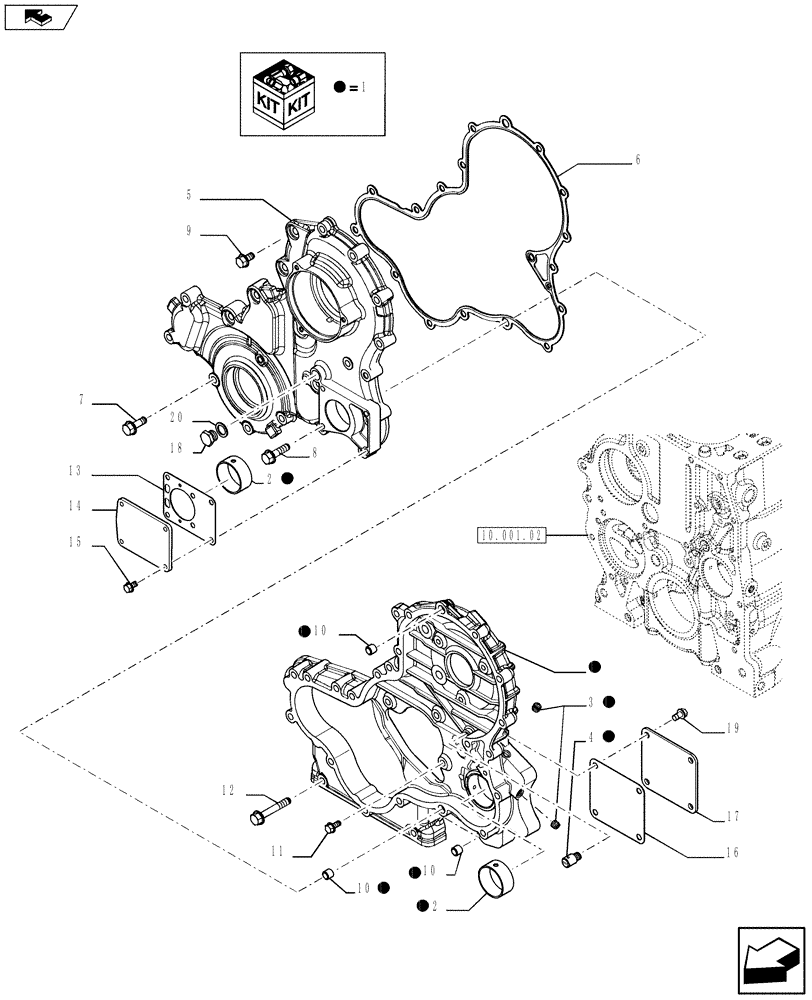

Схема запчастей Case IH F5AE5484A A002 - (10.102.02) - ENGINE BLOCK FRONT COVER (504180166) (10) - ENGINE
10
16
9
20
2
1
14
6
10.001.02
10
19
1
1
11
10
1
1
12
18
2
13
1
8
4
1
17
15
7
3
1
1
home
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504240750

HOUSING

ASSY

1шт.

2

504242802

BUSHING

2шт.

3

504051236

PLUG,Threaded, 1/8"

D = 1/8"

3шт.

4

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

5

504240754

COVER

1шт.

6

504242801

GASKET

1шт.

7

16586424

SCREW,M8 x 25mm

4шт.

8

16586624

SCREW,M8 x 35mm

M8 x 35

15шт.

9

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

10

2852481

DOWEL,8.5mm ID

D = 8.5 mm

4шт.

11

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M8 x 1.25 x 12

5шт.

12

16586924

BOLT,Hex, M8 x 50mm

M8 x 50

6шт.

13

504092108

GASKET

1шт.

14

564530

COVER

1шт.

15

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

4шт.

16

504320425

PLATE

1шт.

17

2853841

COVER

1шт.

18

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

19

16585724

BOLT,M6 x 16mm, Cl 8.8

4шт.

20

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

D = 14 x 20 x 1.5 mm

1шт.
