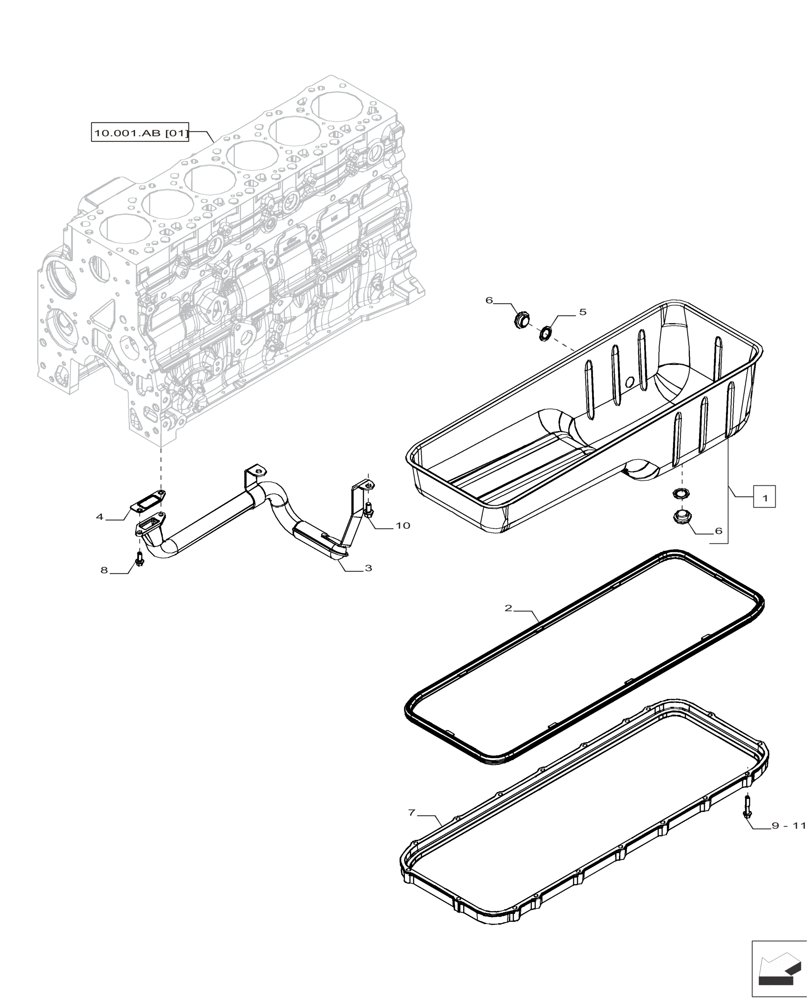

Запчасти Case IH F4HFP613B H005 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504349108

SUMP

1шт.

2

47590191

GASKET

1шт.

3

504084493

SUCTION PIPE

1шт.

4

4898301

GASKET,0.42mm Thk

1шт.

5

2830546

SEALING WASHER

2шт.

6

4895577

PLUG

2шт.

7

4897858

SPACER

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

9

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

10

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

2шт.

11

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.
