Запчасти Case IH F4HFP613B H005 (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

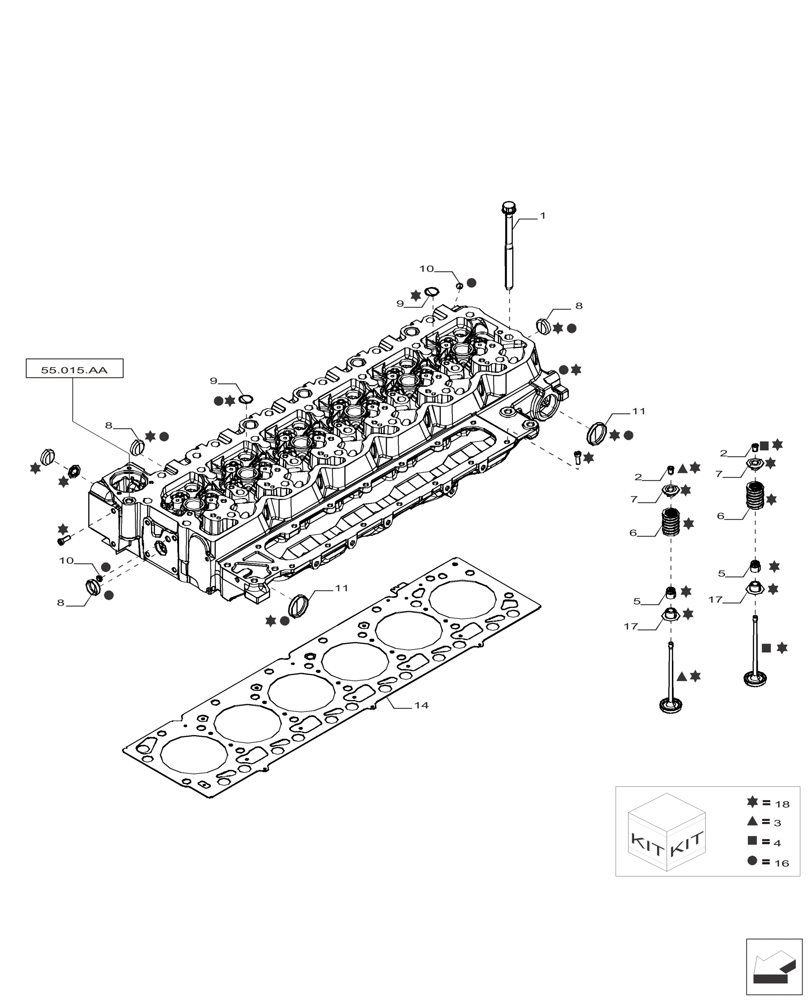

Схема запчастей Case IH F4HFP613B H005 - (10.101.AA) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE
2
18
2
18
16
9
6
16
9
3
16
7
8
16
18
18
18
18
5
18
16
18
4
18
18
14
18
16
10
18
18
18
18
4
6
11
18
3
18
8
18
1
18
3
18
7
5
18
18
8
4
10
18
18
16
4
16
11
3
16
17
16
17
18
16
55.015.aa

Артикул

Название

Примечание

Количество

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

14шт.

2

4899081

ROCKER ARM COTTER

48шт.

3

47422604

SERVICE KIT

12шт.

4

47422606

SERVICE KIT

12шт.

5

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

6

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

6

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

7

4895074

CUP,18mm ID

24шт.

8

4895085

EXPANSION PLUG,25.74mm

13шт.

8

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

9

4895089

PLUG,0.886" L

11шт.

10

4895406

EXPANSION PLUG,9.8mm OD

7шт.

11

4895407

EXPANSION PLUG,38.28mm OD

2шт.

14

47536485

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

14

47536495

CYLINDER HEAD GASKET,1.25mm Thk

1шт.

16

504343488

CYLINDER HEAD

1шт.

16

2831279

CYLINDER HEAD,6 Cylinders

1шт.

17

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

24шт.

18

503776830

CYLINDER HEAD

1шт.

Выбрано товаров: 20
