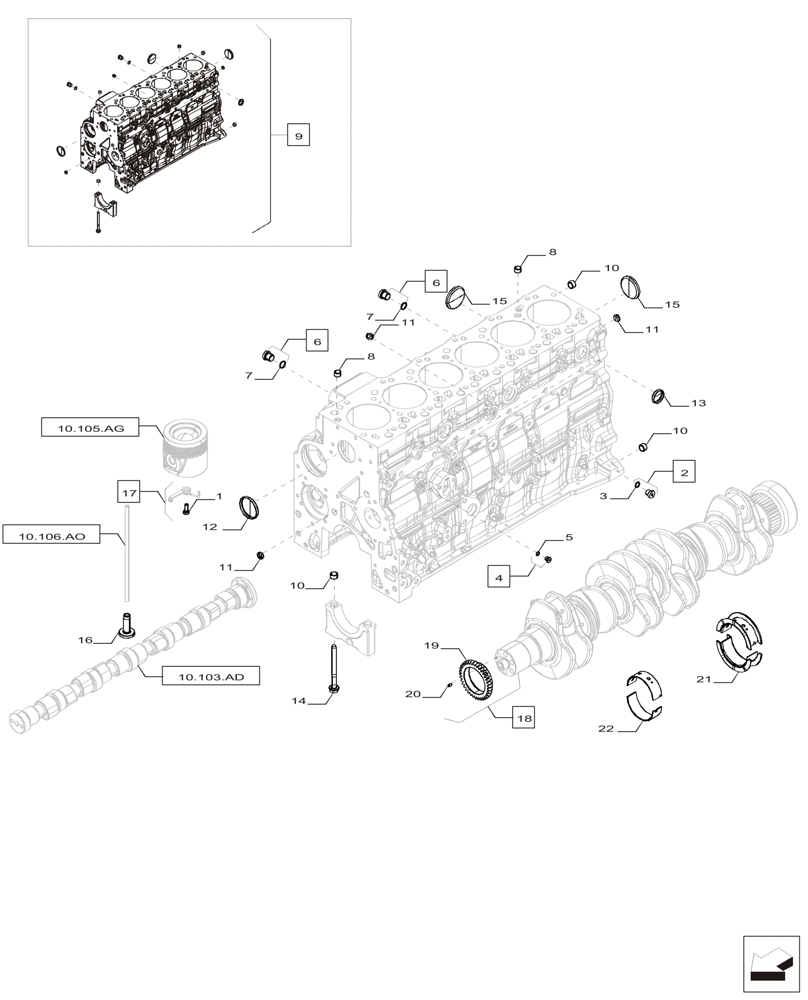

Запчасти Case IH F4HFP613A H001 (10.001.AB[01]) - CYLINDER BLOCK (10) - ENGINE

1

5801639154

SCREW

6шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

2шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

2шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

47651232

CYLINDER BLOCK

1шт.

10

4899026

DOWEL,M18 x 10

2шт.

11

4895039

EXPANSION PLUG,M17.73

3шт.

12

4895038

EXPANSION PLUG,M58.06

6шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

16

4899803

TAPPET

12шт.

17

504054307

LUBE OIL NOZZLE

6шт.

18

504300401

CRANKSHAFT

1шт.

19

4893386

GEAR,36 T

1шт.

20

5801936096

DOWEL

1шт.

21

503776930

SET OF THRUST WASHER

1шт.

21

8099085

SET OF THRUST WASHER

1шт.

21

8099086

SET OF THRUST WASHER

1шт.

22

503776931

SET OF STD MAIN BRGS

6шт.

22

8099083

SET OF MAIN BRGS -

6шт.

22

8099084

SET OF MAIN BRGS-.25

6шт.
