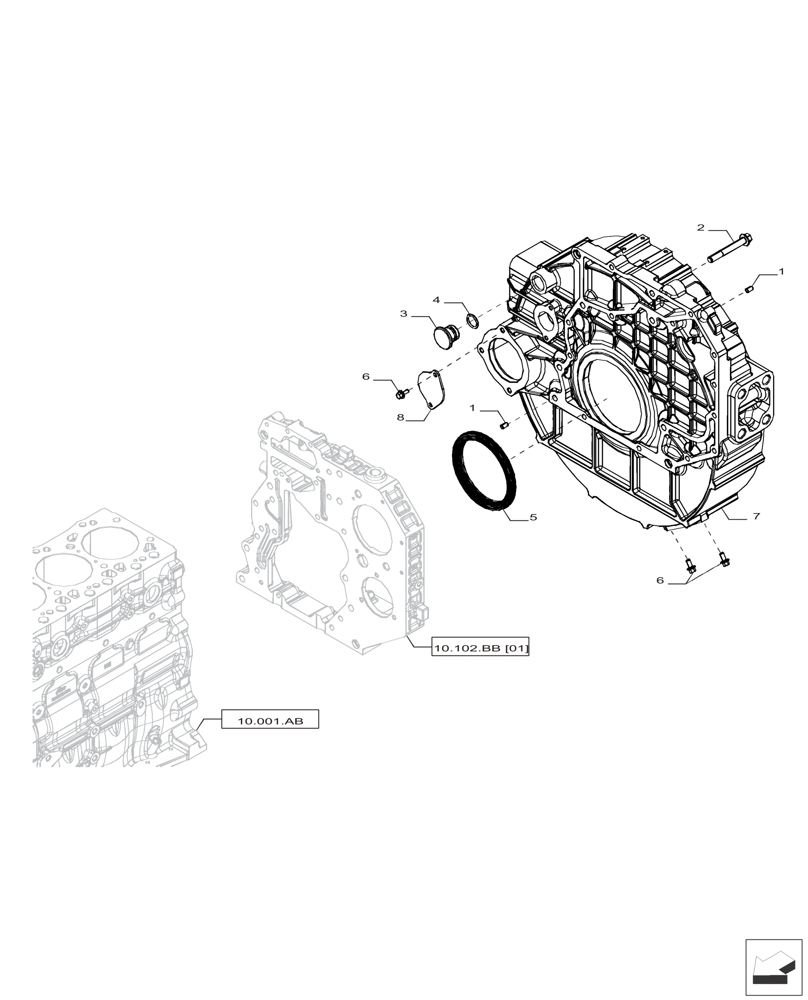

Запчасти Case IH F4HFP613A H001 (10.102.BB[02]) - HOUSING & COVERS (10) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

2шт.

2

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

6шт.

2

16593524

SCREW,M12 x 110mm

2шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

10шт.

3

4895378

BUTTON PLUG,M29.2

1шт.

4

17288480

O-RING,21.81mm ID x 3.53mm

1шт.

5

5801483583

OIL SEAL

1шт.

6

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

7

2854528

HOUSING

1шт.

8

4895155

COVER

1шт.
