(55.013.AD) - ENGINE OIL, SENSOR, PRESSURE

Запчасти Case IH F4HFE96872 J101 (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS

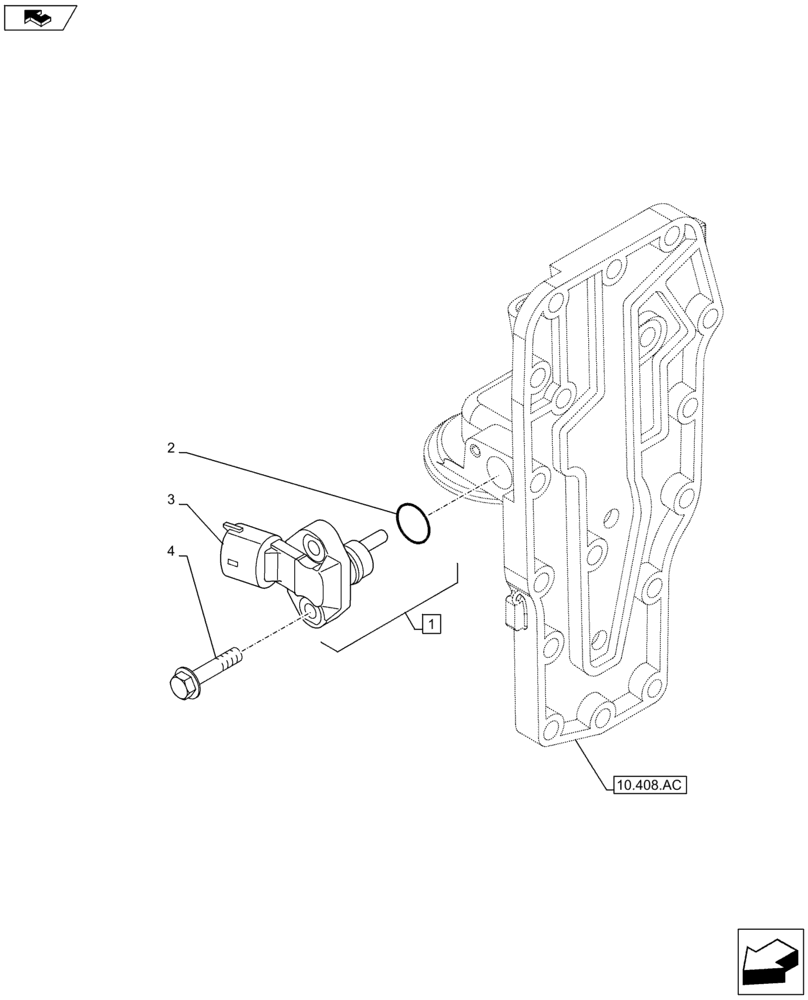

Схема запчастей Case IH F4HFE96872 J101 - (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS
3
2
1
10.408.ac
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2, 3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

NSS

NOT SOLD SEPARAT

Oil pressure and temperature sensor, Incl in 1

1шт.

4

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.
