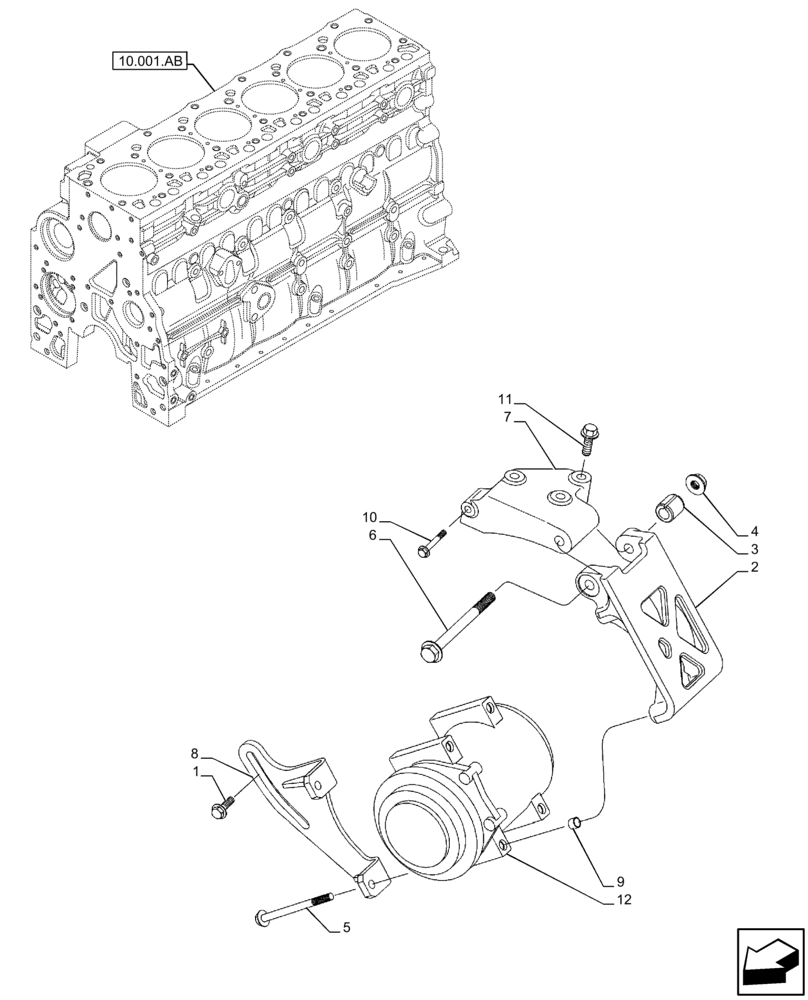

Запчасти Case IH F4HFE96872 J101 (50.200.AA) - AIR CONDITIONING COMPRESSOR ATTACHING GROUP (50) - CAB CLIMATE CONTROL

1

NSS

NOT SOLD SEPARAT

Screw, M8 x 1.25 x 20mm

1шт.

2

2852623

SUPPORT

1шт.

3

2852626

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

4

2852627

FLANGE NUT,Hex, M12 x 1.75

1шт.

5

NSS

NOT SOLD SEPARAT

Screw

1шт.

6

2852624

AIRCOND. COMPRESSOR

1шт.

7

NSS

NOT SOLD SEPARAT

Bracket

1шт.

8

2852426

SCREW

1шт.

9

2852598

PIN

1шт.

9

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, M10 x 1.5 x 50mm

1шт.

12

NSS

NOT SOLD SEPARAT

Air compressor

1шт.
