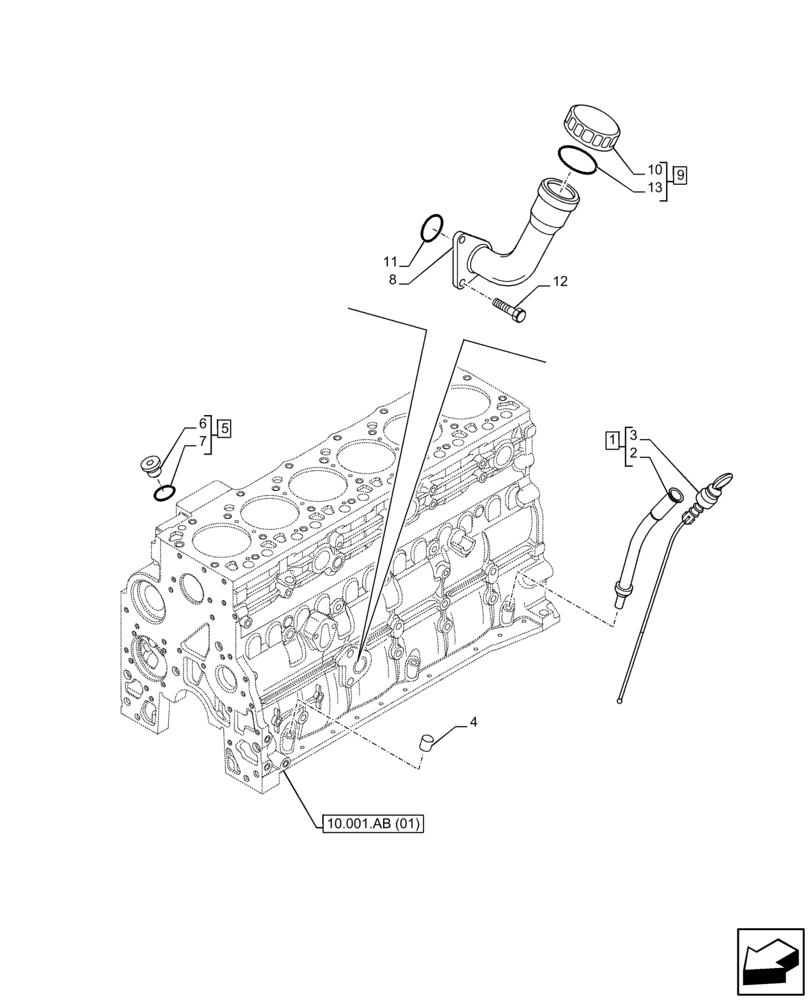

Запчасти Case IH F4HFE96872 J101 (10.304.AJ) - ENGINE OIL, OIL FILL & DIPSTICK (10) - ENGINE

1

2855412

DIPSTICK

ASSY, Incl 2, 3

1шт.

2

2855413

RIGID TUBE,12 mm OD

1шт.

3

2854581

DIPSTICK

1шт.

4

4895406

EXPANSION PLUG,9.8mm OD

3шт.

5

4897330

HEX SOCKET PLUG,M12 x 1.5

ASSY, Incl 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

7

4898502

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

7

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

8

2859216

TUBE

1шт.

9

2853410

FILLER CAP,Female

ASSY, Incl 10, 13

1шт.

10

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

11

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

12

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

1шт.

13

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
