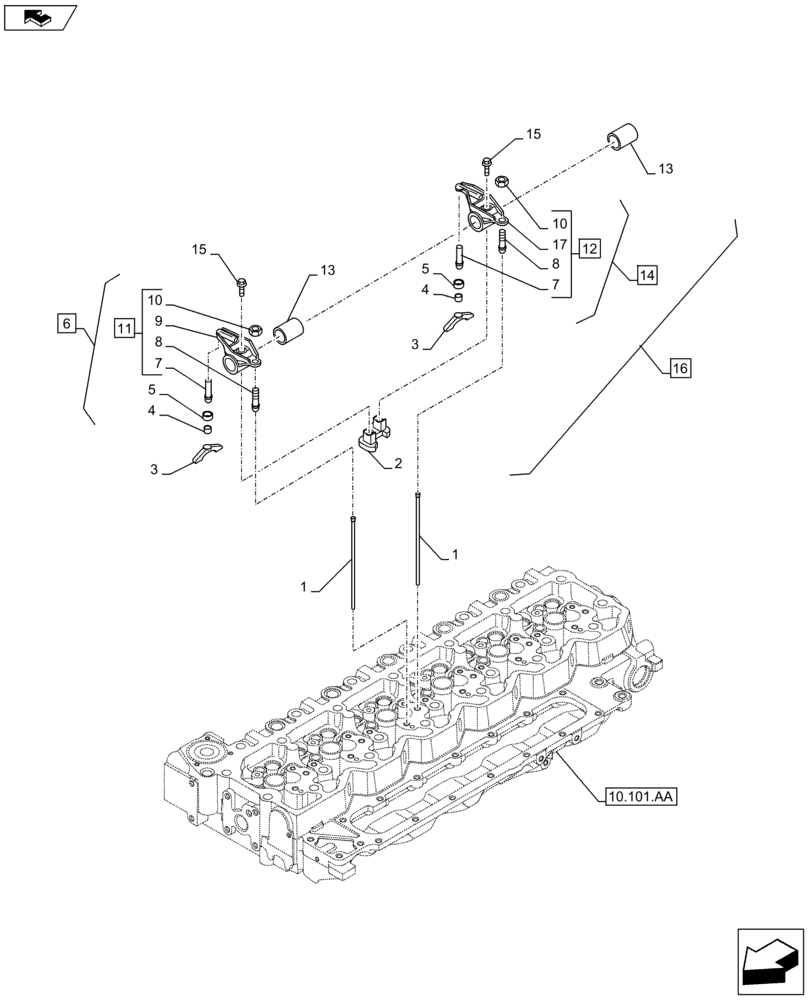

Запчасти Case IH F4HFE96872 J101 (10.106.AO) - ROCKER ARM (10) - ENGINE

1

4895031

PUSH ROD

12шт.

2

2859463

SUPPORT

1шт.

3

47426332

BAR

12шт.

4

2859465

SOCKET,1.5mm ID x 11mm OD x 9mm L

1шт.

5

2859464

RETAINER,10.79mm ID, 7.63mm ID

1шт.

6

NSS

NOT SOLD SEPARAT

ASSY, Incl 4, 5, 11, Incl in 16

1шт.

7

2859470

SOCKET

1шт.

8

2859468

ADJUSTMENT SCREW,3/8" - 24 x 23.85mm

1шт.

9

NSS

NOT SOLD SEPARAT

Lever, Incl in 11

1шт.

10

2859467

NUT,Hex, 3/8" - 24, RH

1шт.

11

NSS

NOT SOLD SEPARAT

ASSY, Incl 7 - 10, Incl in 6

1шт.

12

NSS

NOT SOLD SEPARAT

ASSY, Incl 7, 8, 10, 17, Incl in 14

1шт.

13

NSS

NOT SOLD SEPARAT

Rocker Arm

2шт.

14

2859462

ROCKER ARM

ASSY, Incl 4, 5, 12

1шт.

15

2856460

BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9

2шт.

16

2859460

ROCKER ARM

ASSY, Incl 2, 6, 13 - 15

6шт.

17

NSS

NOT SOLD SEPARAT

Lever, Incl in 12

1шт.
