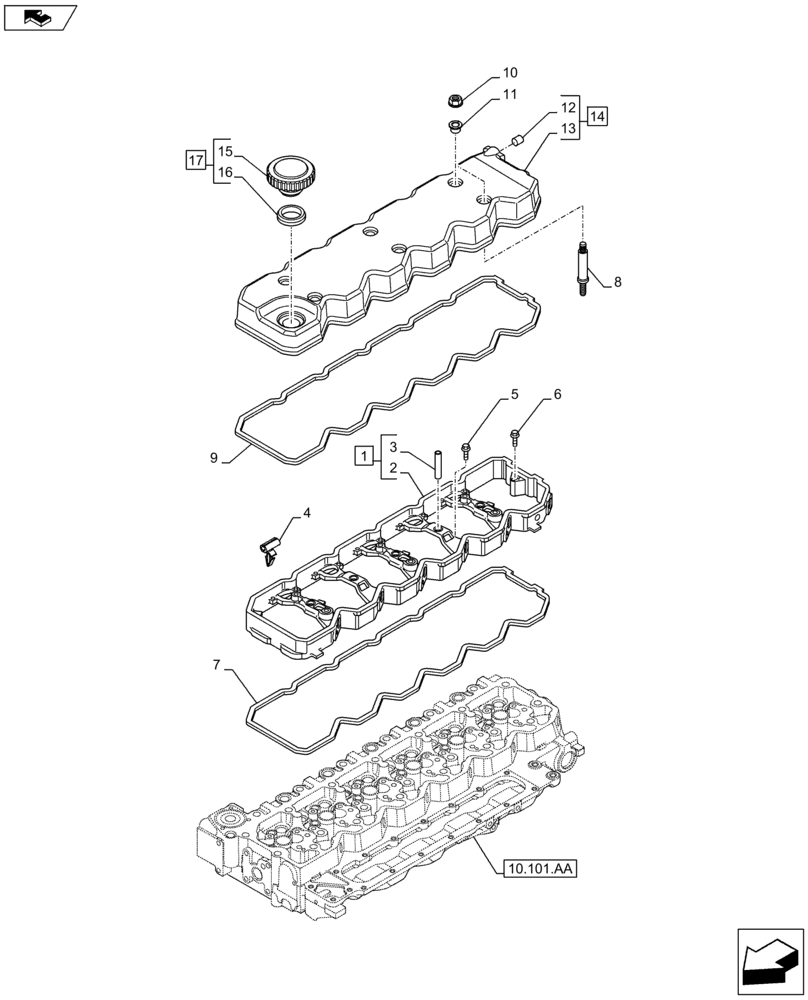

Запчасти Case IH F4HFE96872 J101 (10.101.AB) - CYLINDER HEAD, COVER (10) - ENGINE

1

4899257

HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

4

2852428

WIRE CLAMP,6mm ID

6шт.

5

4895432

SCREW,M8 x 1.25 x 70mm

5шт.

5

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8 x 1.25 x 40mm

4шт.

6

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

7

2853788

GASKET,10.35mm Thk

1шт.

8

4896991

BOLT

6шт.

9

2853784

GASKET,10.5mm Thk

1шт.

10

4893936

FLANGE NUT,Hex, M13, RH Thd, Cl 9.8

6шт.

11

4899239

ISOLATOR,29mm OD x 13mm L

6шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

13

2853857

VALVE COVER

1шт.

14

4895910

VALVE COVER

ASSY, Incl 12, 13

1шт.

15

NSS

NOT SOLD SEPARAT

Cap, Incl in 17

1шт.

16

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

17

2852773

CAP

ASSY, Incl 15, 16

1шт.
