Запчасти Case IH F4HFE613T A004 (10.408.01) - HEAT EXCHANGER - ENGINE- ENGINE OIL FILTER (2853603 - 2852525) (10) - ENGINE

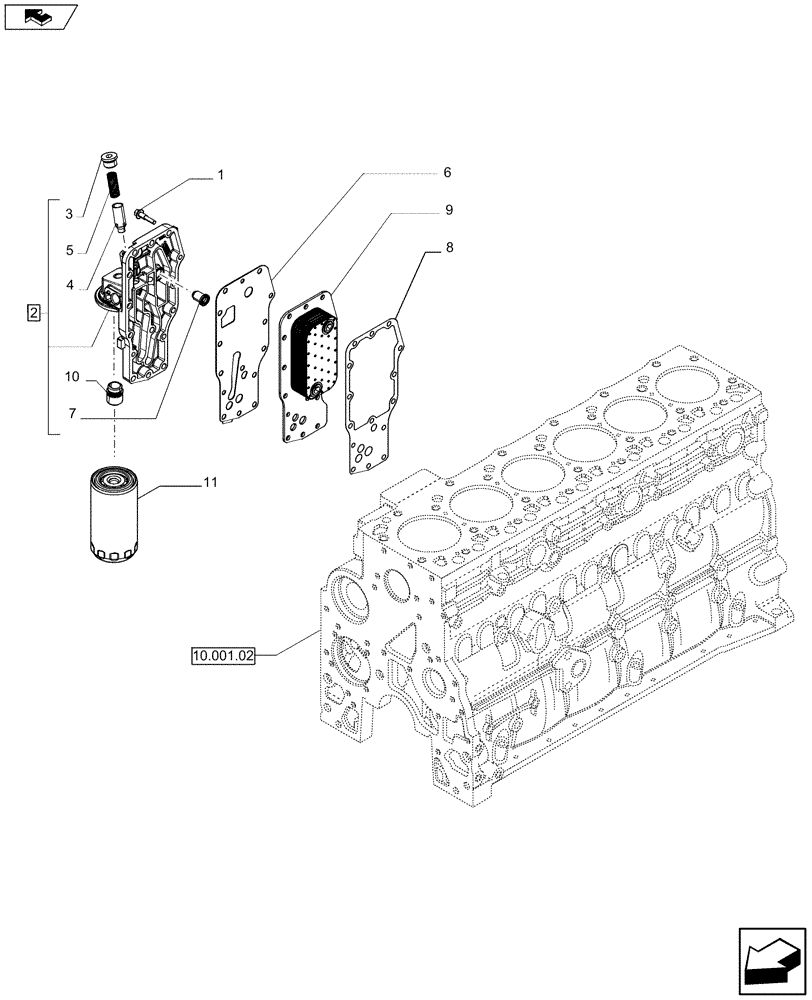

Схема запчастей Case IH F4HFE613T A004 - (10.408.01) - HEAT EXCHANGER - ENGINE- ENGINE OIL FILTER (2853603 - 2852525) (10) - ENGINE
10
3
8
5
1
7
2
6
home
10.001.02
4
11
9

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

10шт.

1

16598324

SCREW,Hex, M8 x 100mm, Cl 8.8

2шт.

1

4899041

SCREW,Hex Flg, M8 x 1.25 x 60

3шт.

2

4899566

FILTER HEAD

Oil Filter Support

1шт.

3

504096409

PLUG

Comes With O-Ring

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

2831317

GASKET,0.9mm Thk

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

2830559

GASKET,0.5mm Thk

1шт.

9

504387924

HEAT EXCHANGER

Oil Cooler

1шт.

10

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

11

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

Выбрано товаров: 13
