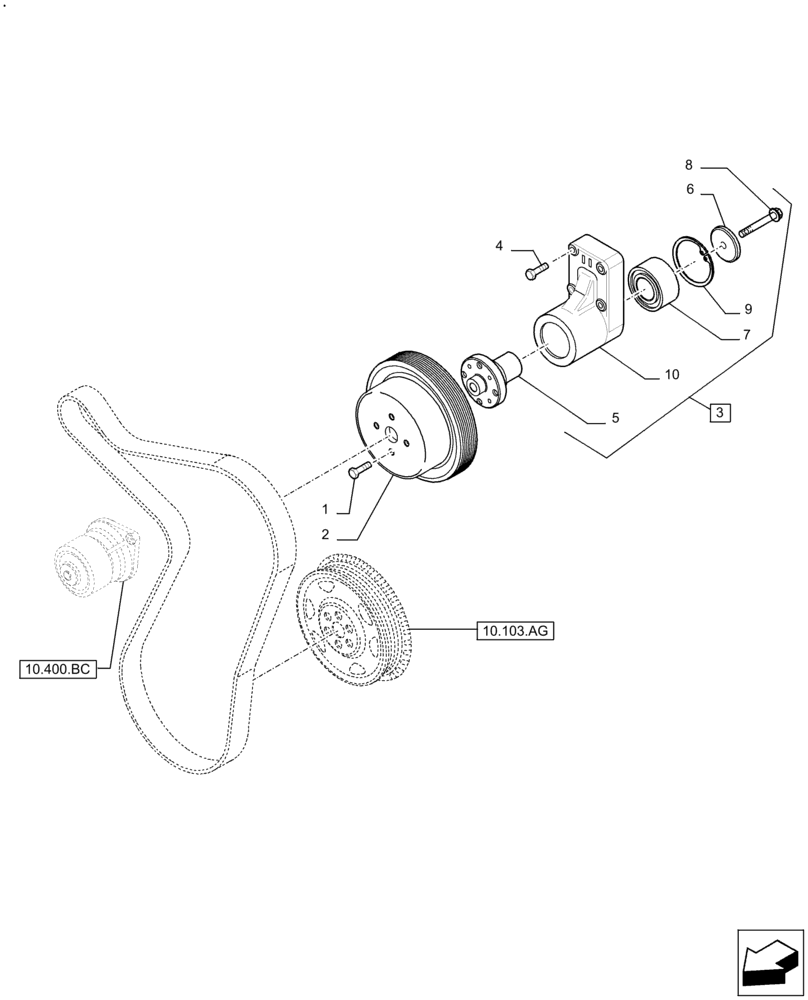

Запчасти Case IH F4HFE613G B004 (10.414.AD) - FAN, PULLEY (10) - ENGINE

1

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

2

2852252

PULLEY

1шт.

3

2853210

BRACKET

Assy, Incl 4, 5

1шт.

4

4899053

SCREW,Hex Flg, M8 x 45

4шт.

5

4892426

HUB

1шт.

6

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

9

2852171

SNAP RING

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.
