Запчасти Case IH F4HFE613F B004 (50.200.AA) - AIR CONDITIONING COMPRESSOR (50) - CAB CLIMATE CONTROL

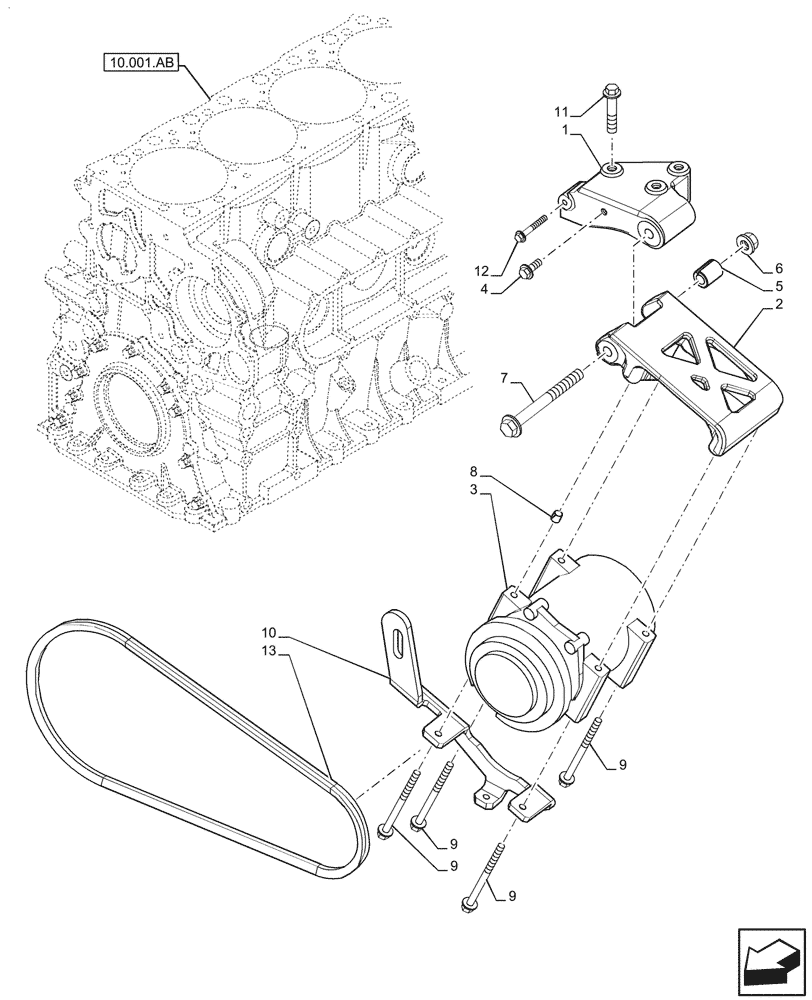

Схема запчастей Case IH F4HFE613F B004 - (50.200.AA) - AIR CONDITIONING COMPRESSOR (50) - CAB CLIMATE CONTROL
10.001.ab
11
4
8
1
12
9
13
6
9
9
5
7
3
9
2
10

Артикул

Название

Примечание

Количество

1

47586503

SUPPORT

A C Compressor

1шт.

2

2852623

SUPPORT

A C Compressor

1шт.

3

84159489

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

4

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

5

2852626

SPACER,12.5mm ID x 22.4mm OD x 27mm L

A C Compressor

1шт.

6

2852627

FLANGE NUT,Hex, M12 x 1.75

M12 x 1.75

1шт.

7

2852925

SCREW,Hex, M12 x 1.75 x 130mm

M12 x 1.75 x 130mm

1шт.

8

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

Dowel

2шт.

9

2852628

SCREW,Hex, M8 x 1.25 x 105mm

Flange Head

4шт.

10

47586500

BRACKET

A C Tensioner

1шт.

11

4899144

SCREW,Hex Flg, M10 x 1.5 x 50

3шт.

12

4899147

SCREW,Hex, M6 x 1 x 45mm

M6 x 1 x 45mm

1шт.

13

47586403

V-BELT

A C Compressor

1шт.

Выбрано товаров: 13
