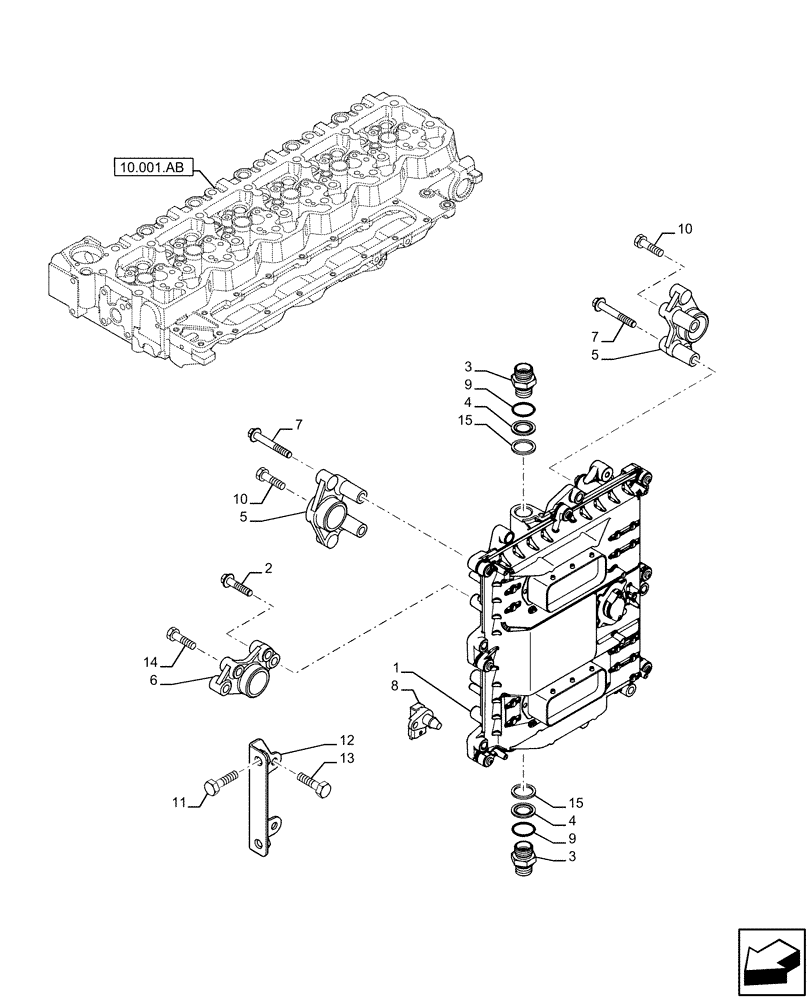

Запчасти Case IH F4HFE613E B005 (55.015.AA[01]) - CONTROL UNIT, ENGINE (55) - ELECTRICAL SYSTEMS

1

84499733

ECU

1шт.

1

84499733R

REMAN ELECT CONTROL

1шт.

1

84499733C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

2шт.

3

47581921

FITTING

2шт.

4

2855150

INSULATOR BLOCK

6шт.

5

NS

NOT SERVICED

Rear support

2шт.

5

47581883

BRACKET

1шт.

5

47582594

BRACKET

1шт.

6

NS

NOT SERVICED

Bracket

1шт.

6

504297839

BRACKET

1шт.

7

NS

NOT SERVICED

Screw, M6 x 16mm

2шт.

7

17935001

SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm

4шт.

8

4897224

SENSOR

1шт.

9

4858609

WASHER,Brass

2шт.

10

2852101

FLANGE BOLT,Hex, M6 x 16mm

2шт.

10

NS

NOT SERVICED

Screw

2шт.

11

2852818

SCREW,Hex, M6 x 1 x 30mm

4шт.

12

47581881

SUPPORT

2шт.

13

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

14

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

2шт.

15

4858609

WASHER,Brass

2шт.
