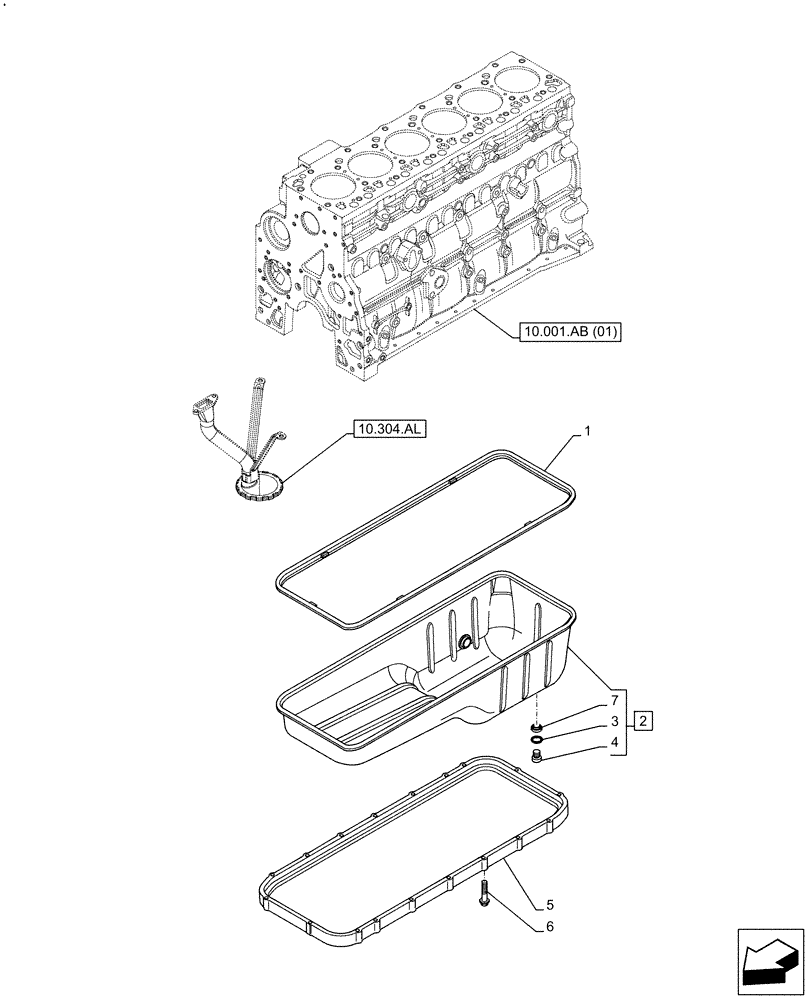

Запчасти Case IH F4HFE613D B006 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

47590191

GASKET

1шт.

1

5801645677

GASKET,GASKET OIL PAN

1шт.

2

4898036

ENGINE OIL PAN

ASSY, Incl 3, 4, 7

1шт.

2

4898037

ENGINE OIL PAN

1шт.

2

504349108

SUMP

1шт.

2a

4898038

ENGINE OIL PAN

1шт.

3

2830546

SEALING WASHER

Sealing washer, Incl in 2

2шт.

4

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

2шт.

5

4897858

SPACER

1шт.

6

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

6

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

18шт.

7

4895577

PLUG

Plug, Incl in 2

2шт.
