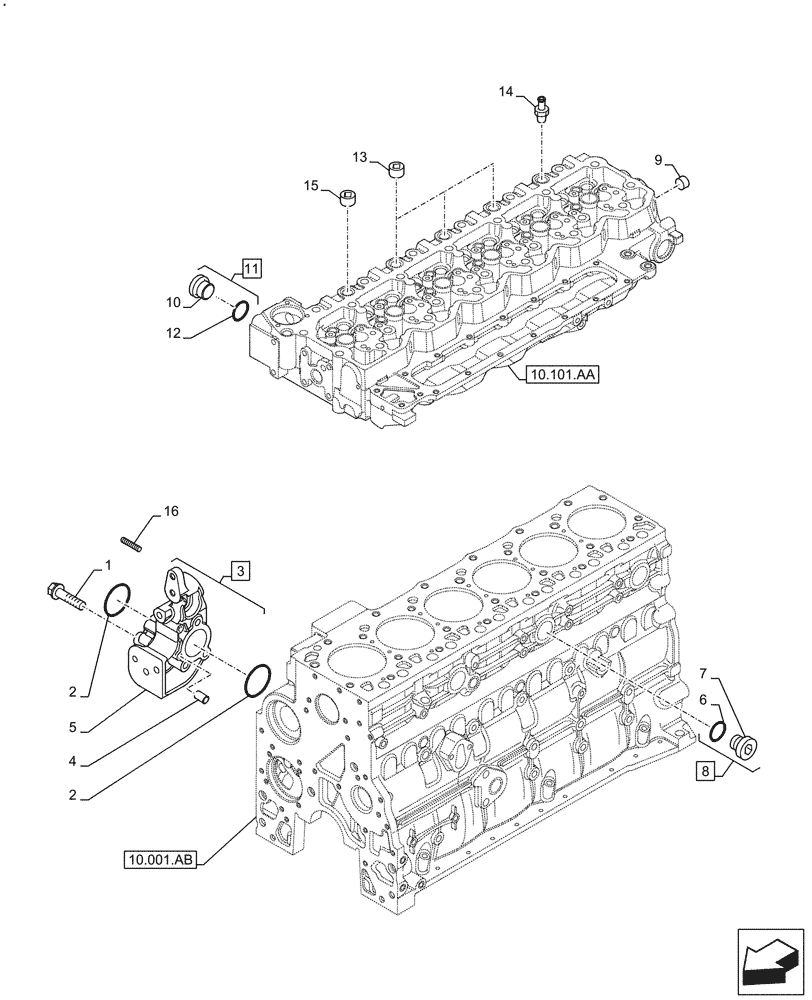

Запчасти Case IH F4HFE613C B004 (10.400.AE) - ENGINE, COOLING SYSTEM LINE (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 1.5 x 80

2шт.

1

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

47589691

SUPPORT

ASSY; Incl 4-5

1шт.

4

98405182

DOWEL

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

6

4895625

O-RING,13.3mm ID x 2.2mm Width

ID = 13.3 x 2.2

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 6, 7

1шт.

9

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 10, 12

1шт.

12

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

ID = 19.3 x 2.2

1шт.

13

4895078

PIPE PLUG,1/2"-14

4шт.

14

47535327

FITTING

1шт.

15

4895118

FITTING

1шт.

16

16748734

SCREW

3шт.
