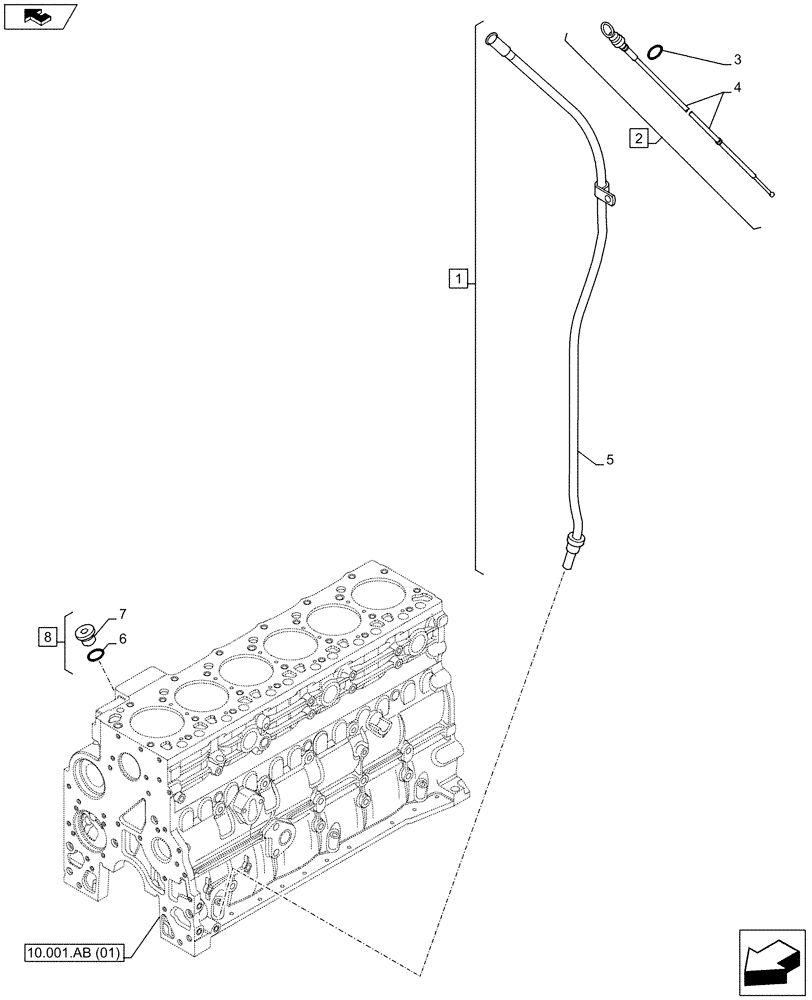

Запчасти Case IH F4HFE6138 A002 (10.304.AS) - ENGINE OIL, DIPSTICK (10) - ENGINE

1

2855412

DIPSTICK

ASSY, Incl 2, 5

1шт.

2

2854581

DIPSTICK

ASSY, Incl 3, 4

1шт.

3

4898502

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

4

NSS

NOT SOLD SEPARAT

Dipstick, Incl in 2

1шт.

5

2855413

RIGID TUBE,12 mm OD

1шт.

6

4895610

O-RING,2.2mm Thk x 9.3mm ID

ID = 9.3 x 2.2

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

8

4897330

HEX SOCKET PLUG,M12 x 1.5

ASSY, Incl 6, 7

1шт.
