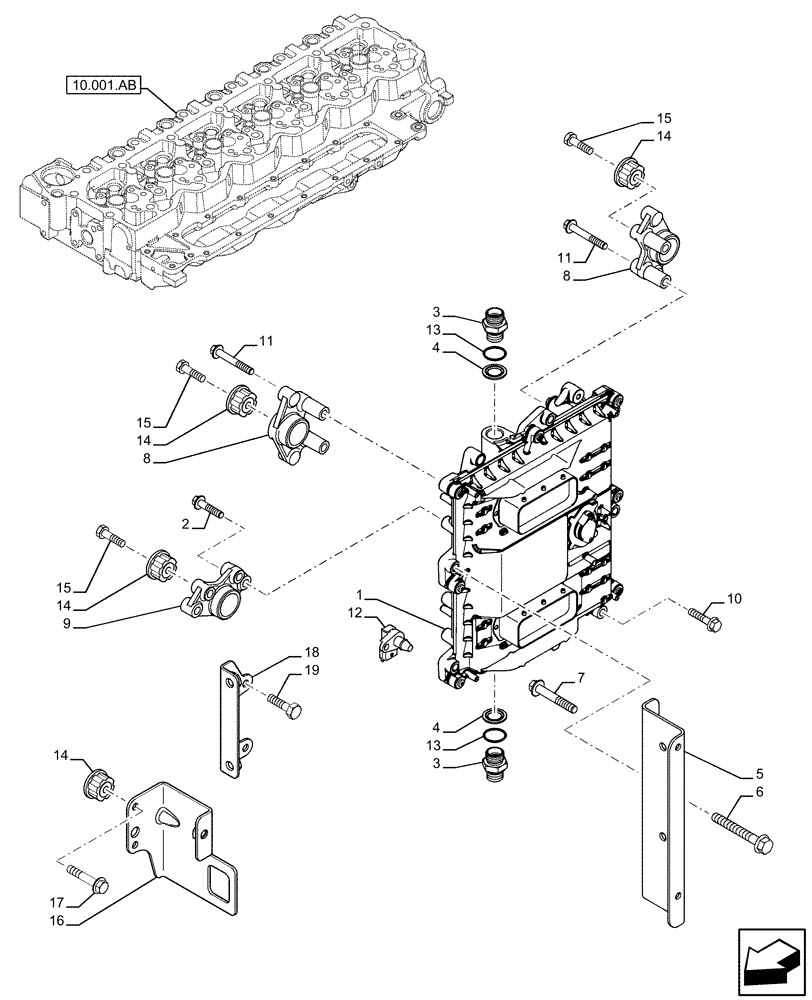

Запчасти Case IH F4HFE6137 B003 (55.015.AA) - CONTROL UNIT, ENGINE (55) - ELECTRICAL SYSTEMS

1

84499733

ECU

1шт.

1

84499733R

REMAN ELECT CONTROL

1шт.

1

84499733C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

8094212

1шт.

2

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

2шт.

3

504103271

FITTING,FITTING QUICK DISCONNECT

2шт.

3

47581921

FITTING

2шт.

4

2855150

INSULATOR BLOCK

2шт.

5

NS

NOT SERVICED

Rear support

2шт.

6

NS

NOT SERVICED

Screw, M8 x 1.25 x 45mm

3шт.

7

NS

NOT SERVICED

Screw, M6 x 16mm

2шт.

8

47581883

BRACKET

2шт.

8

5801556780

SUPPORT,SUPPORT ENGINE CONTROL U

2шт.

8

47582594

BRACKET

2шт.

9

504297839

BRACKET

1шт.

10

NS

NOT SERVICED

Screw

2шт.

11

17935001

SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm

4шт.

11

16586025

SCREW,Hex, M6 x 30mm

4шт.

12

4897224

SENSOR

2шт.

13

4858609

WASHER,Brass

2шт.

14

98498817

ISOLATOR

4шт.

15

2852101

FLANGE BOLT,Hex, M6 x 16mm

3шт.

16

5801725851

BRACKET,BRACKET ECU SUPPORT

1шт.

17

2852818

SCREW,Hex, M6 x 1 x 30mm

2шт.

18

47581881

SUPPORT

2шт.

18

5801611606

BRACKET,BRACKET ECU SUPPORT

2шт.

19

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

2шт.

19

18137825

BOLT,Hex, M6 x 16mm

2шт.
