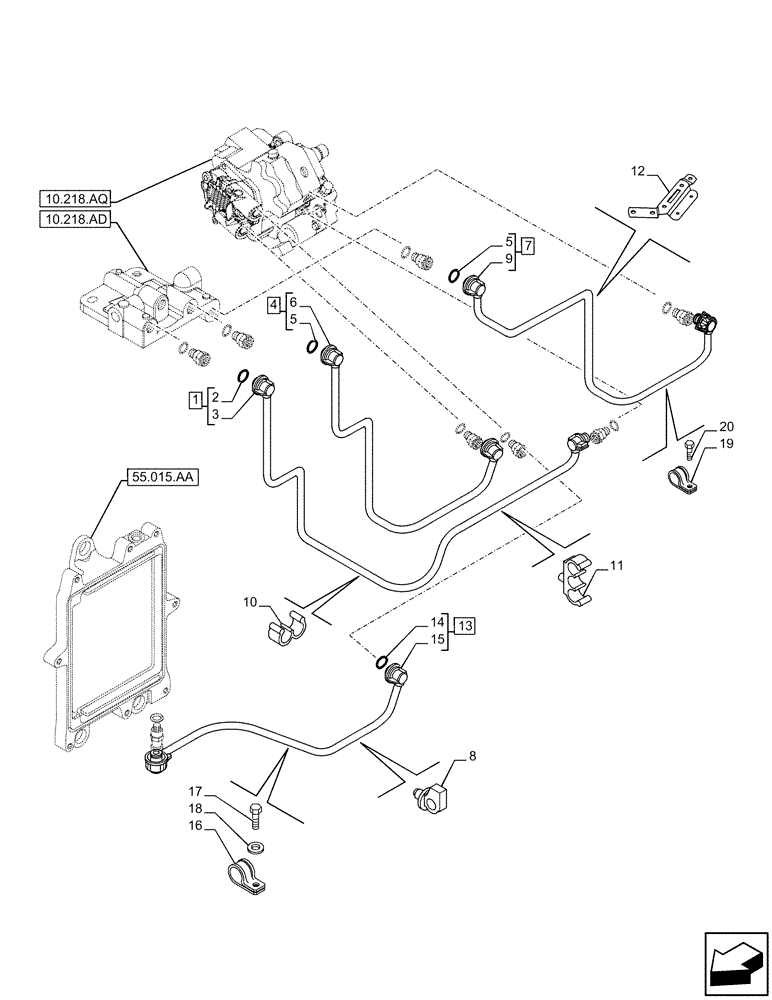

Запчасти Case IH F4HFE6137 B003 (10.210.AF) - FUEL LINE (10) - ENGINE

1

47529779

PIPE

ASSY, Incl 2, 3

1шт.

1

5801584068

INJECTION PIPE,PIPE ASSY INJ PUMP TO FI

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

2854572

90 ELBOW

Pipe, Incl in 1

1шт.

4

47530101

PIPE

ASSY, Incl 5, 6

1шт.

4

5801634202

INJECTION PIPE,PIPE ASSY INLET TO INJ P

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

6

2854572

90 ELBOW

Pipe, Incl in 4

1шт.

7

47530099

PIPE

ASSY, Incl 5, 9

1шт.

7

5801602985

FUEL TUBE,PIPE ASSY RETURN TO TANK

1шт.

8

4897277

SCREW

2шт.

9

2854572

90 ELBOW

Pipe, Incl in 7

1шт.

10

47528951

BRACKET

2шт.

10

5801640019

HOSE CLIP

2шт.

10

5801612942

CLIP,CLIP FUEL PIPE

2шт.

11

47529785

CLIP

1шт.

12

47528949

BRACKET

1шт.

13

47542097

PIPE

ASSY, ECM to Pump Tube, Incl 14, 15

1шт.

13

5801582683

TUBE,TUBE ASSY ECM TO PUMP

1шт.

14

4890929

O-RING,3mm Thk x 11mm ID

2шт.

15

NSS

NOT SOLD SEPARAT

Pipe, Incl in 13

1шт.

16

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

18179598

CLAMP

1шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

17

16673834

SCREW,M8 x 30mm

1шт.

18

2856006

SPACER

1шт.

18

17816314

BAR

1шт.

19

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

20

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.
