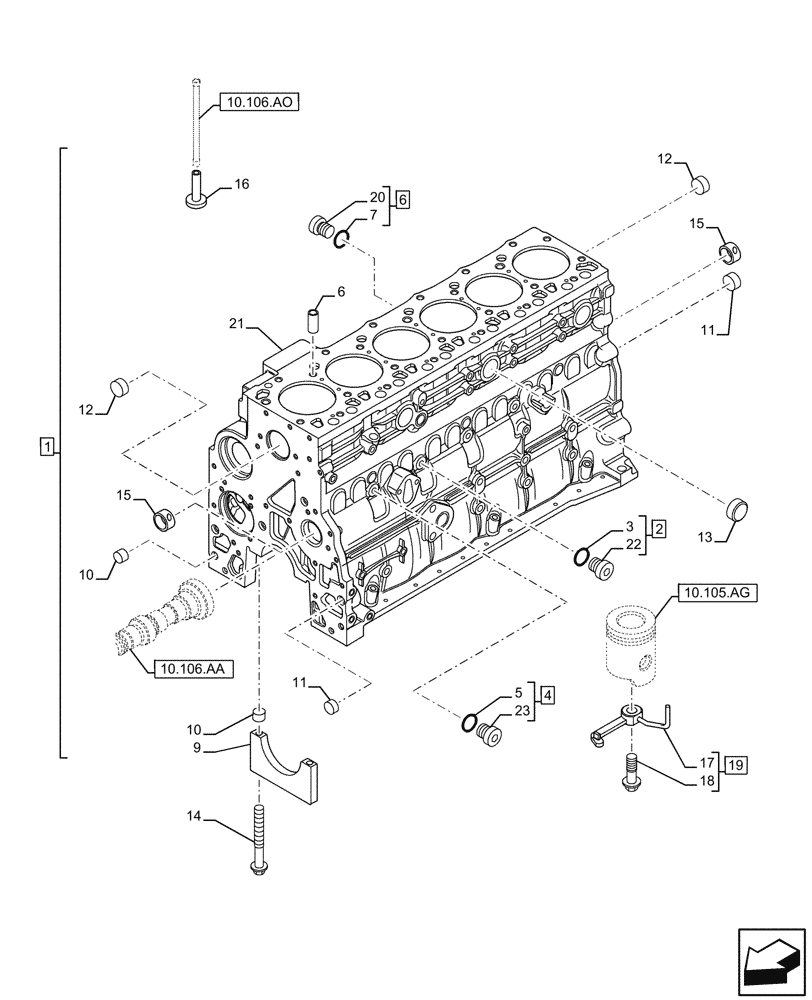

Запчасти Case IH F4HFE6137 B003 (10.001.AB[01]) - CRANKCASE (10) - ENGINE

1

504288602

ASSY, Incl 9 - 15, 21

1шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

ASSY, Incl 3, 22

2шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

2шт.

4

4899009

PLUG,M10 x1

ASSY, Incl 5, 23

2шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

2шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 7, 20

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

6шт.

10

4899026

DOWEL,M18 x 10

14шт.

11

4895039

EXPANSION PLUG,M17.73

3шт.

12

4895038

EXPANSION PLUG,M58.06

6шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

4шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

2шт.

16

4899803

TAPPET

2шт.

17

NSS

NOT SOLD SEPARAT

Oil nozzle, Incl in 19

6шт.

18

5801639154

SCREW

6шт.

19

504047260

LUBE OIL NOZZLE

ASSY, Incl 17, 18

6шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

2шт.

21

NSS

NOT SOLD SEPARAT

Crankcase, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

2шт.
