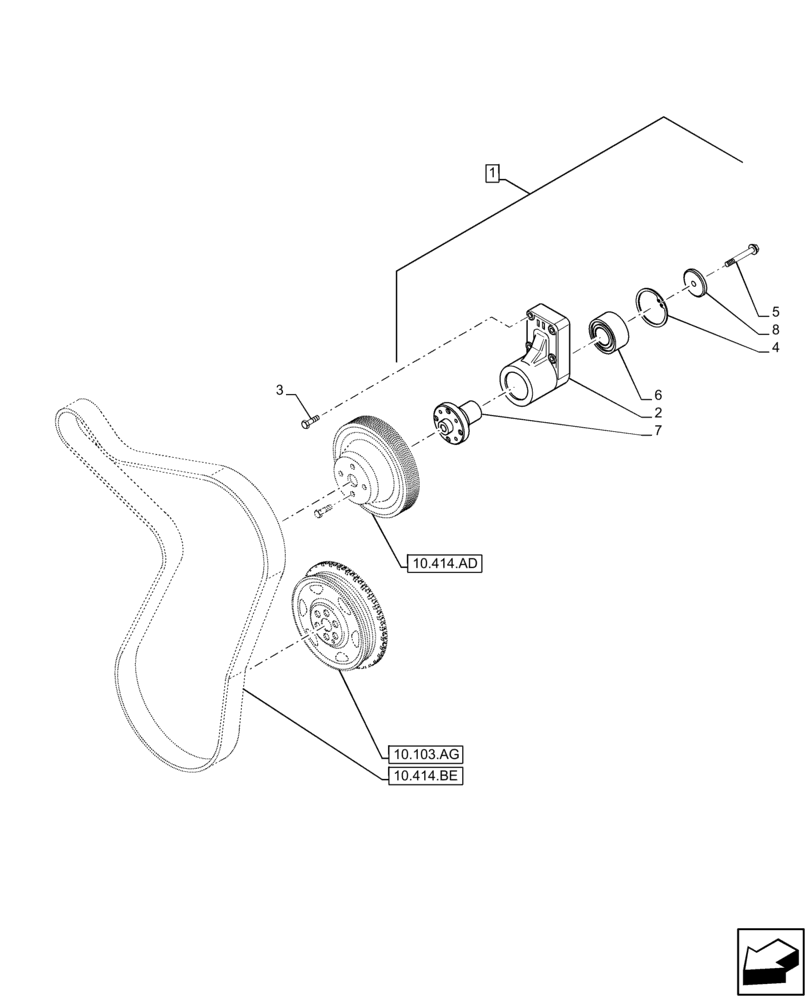

Запчасти Case IH F4HFE6136 B003 (10.414.AC) - FAN DRIVE (10) - ENGINE

1

2852170

SUPPORT

Fan, Incl 2, 4 - 8

1шт.

2

2852173

Support

1шт.

3

4899053

SCREW,Hex Flg, M8 x 45

4шт.

4

2852171

SNAP RING

1шт.

5

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

6

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

7

4892426

HUB

1шт.

8

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.
