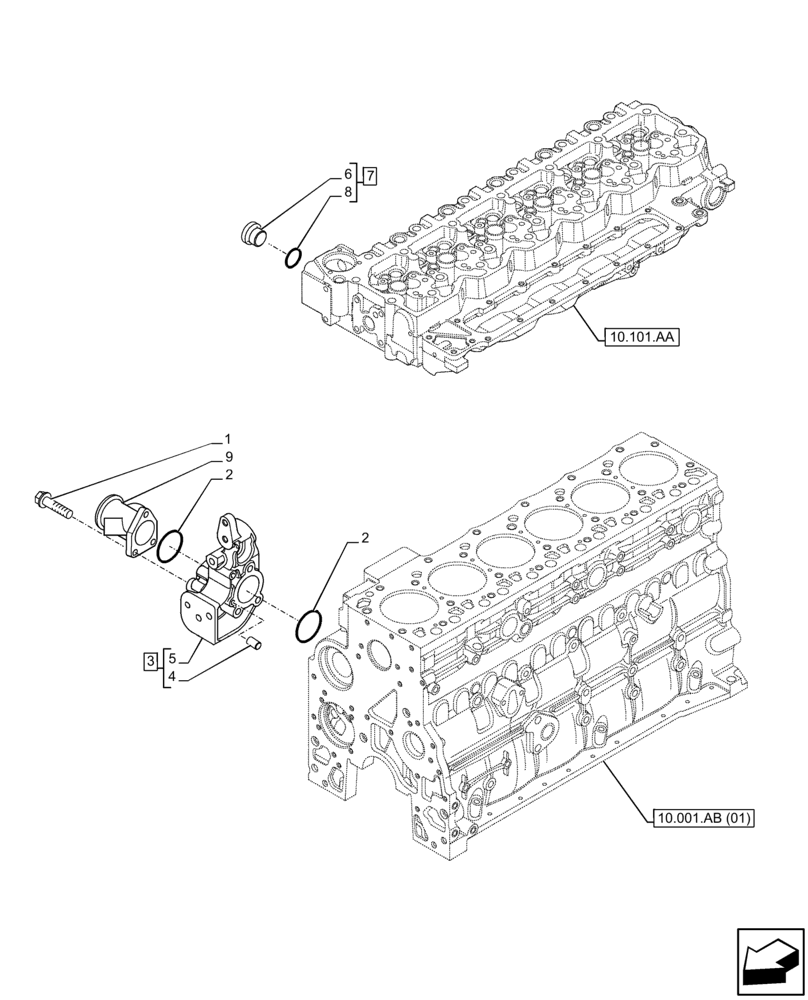

Запчасти Case IH F4HFE6136 B003 (10.400.AE) - COOLANT HEATING LINES (10) - ENGINE

1

2852325

SCREW

3шт.

2

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

3

47536450

SUPPORT

ASSY, Incl 4 - 5

1шт.

4

98405182

DOWEL

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

6

2852496

PLUG,M18 x 1.5

1шт.

7

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 6, 8

1шт.

8

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

9

2852468

TUBE

1шт.
