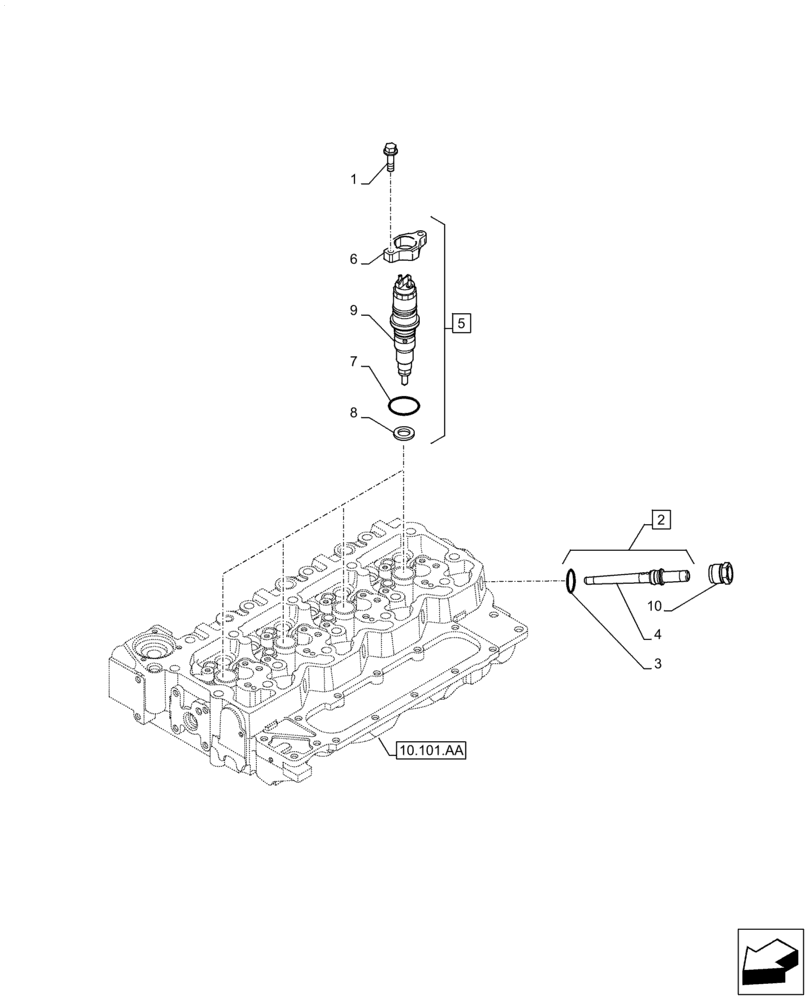

Запчасти Case IH F4HFE413Y B001 (10.218.AF) - FUEL INJECTOR (10) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

8шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY, Incl 3, 4

4шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

47712401

FUEL SYSTEM INJECTOR

ASSY, Incl 6 - 9

4шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, ID20.9 x 3.0, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Sealing Washer, M7 x 1.5 x 15, Incl in 5

1шт.

9

2854607

HYD CONNECTOR

1шт.

10

4893739

TUBE NUT,Hex, M22 x 1.5

4шт.
