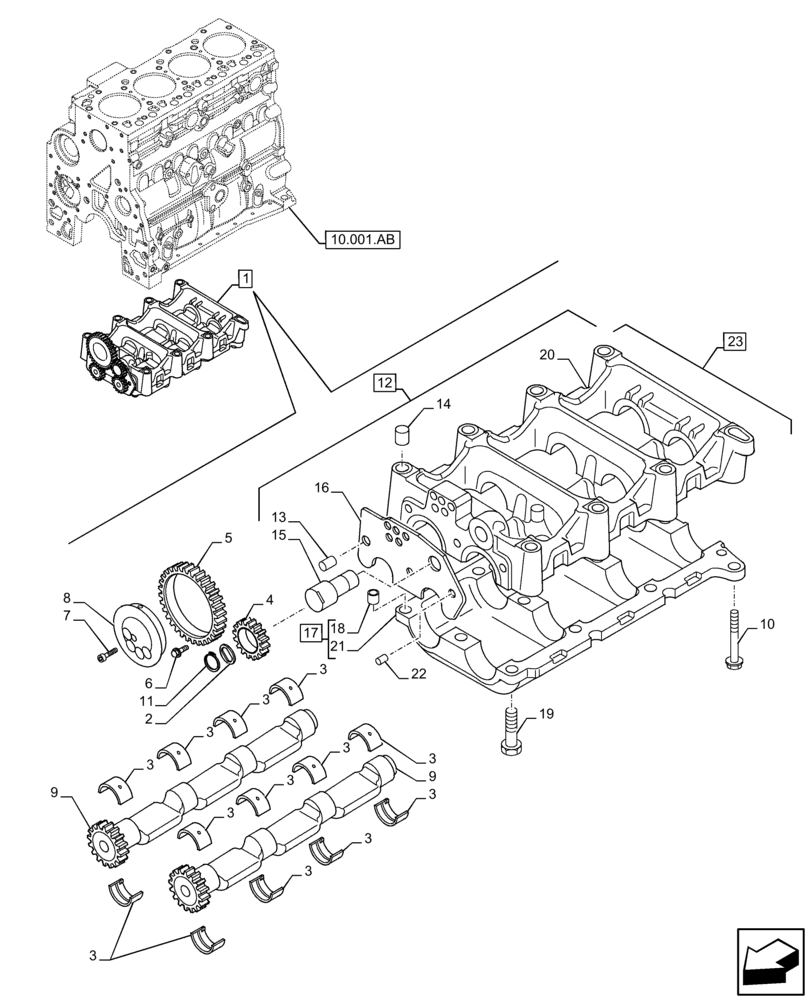

Запчасти Case IH F4HFE413Y B001 (10.110.AC) - DYNAMIC BALANCER (10) - ENGINE

1

2855743

BALANCER

ASSY, Incl 2 - 12

1шт.

2

2855753

THRUST PLATE

1шт.

3

4897071

BUSHING

Alternative

16шт.

3

2855747

BEARING SET

Alternative

16шт.

3

47629426

SET OF CONN ROD BRGS STD

1шт.

4

2855751

BUSHING

1шт.

4

4897048

IDLER GEAR

Alternative

1шт.

4

2855750

IDLER GEAR

Alternative

1шт.

5

4896947

IDLER GEAR

Alternative

1шт.

5

2855748

IDLER GEAR

Alternative

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

5шт.

8

NSS

NOT SOLD SEPARAT

incl in 1

1шт.

9

2831354

SHAFT

2шт.

10

4899109

SCREW,Hex, M10 x 1.5 x 80

7шт.

10

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

11

4897125

SNAP RING,Ext, M23

1шт.

12

2855744

HOUSING

Assy, Incl 13 - 19

1шт.

12

2855743

BALANCER

1шт.

13

2831305

DOWEL,M8 x 17 L

1шт.

14

4899027

DOWEL,M14.05 x 14 L

2шт.

15

2830948

IDLE SHAFT

1шт.

16

2855746

THRUST PLATE

1шт.

17

2831302

HOUSING

Housing, Incl in 12

1шт.

18

4891209

DOWEL,M13 x 8 L

6шт.

19

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

12шт.

20

2831303

HOUSING

1шт.

21

2831304

SUMP

1шт.

22

4898283

PLUG,Female

1шт.

23

2855745

HOUSING

ASSY, Incl 20

1шт.
