(55.013.AD) - ENGINE OIL, SENSOR, PRESSURE

Запчасти Case IH F4HFE413E A002 (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS

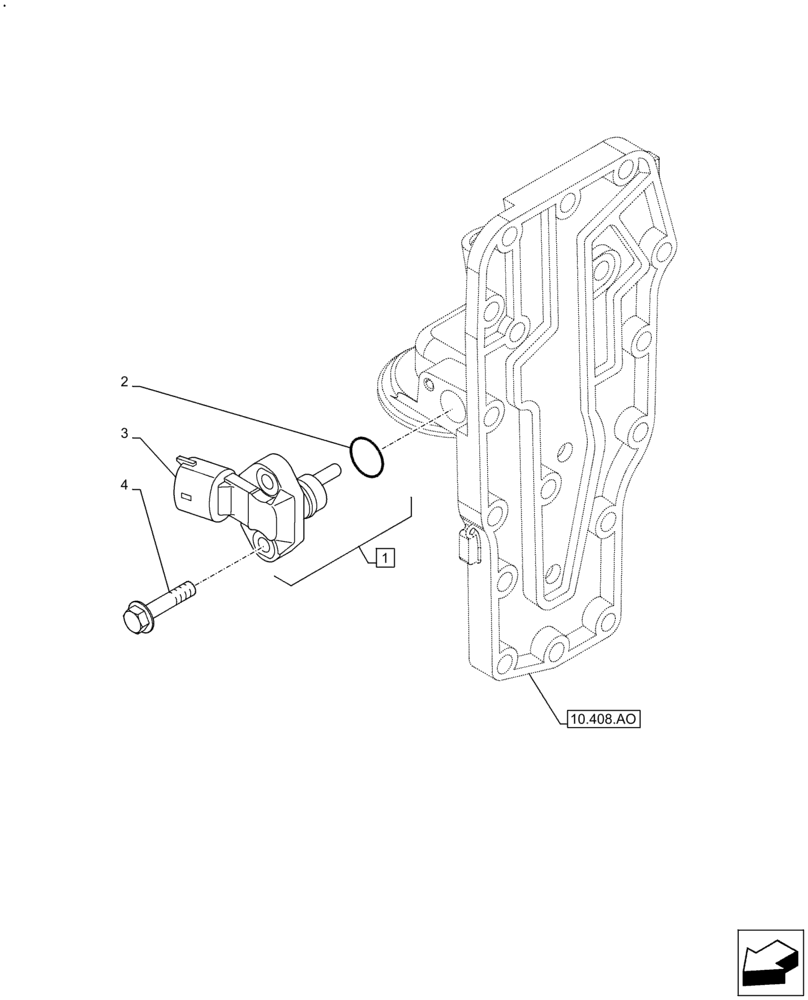

Схема запчастей Case IH F4HFE413E A002 - (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS
4
10.408.ao
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

Assy, Incl 2, 3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

ID = 0.549 x 0.103

1шт.

3

2859675

SENSOR,Oil Temperature

1шт.

4

4899110

SCREW,Hex Flg, M6 x 1 x 20

M6 x 1.0 x 20

3шт.
