(10.304.AE) - ENGINE OIL FILTER

Запчасти Case IH F4HFE413E A002 (10.304.AE) - ENGINE OIL FILTER (10) - ENGINE

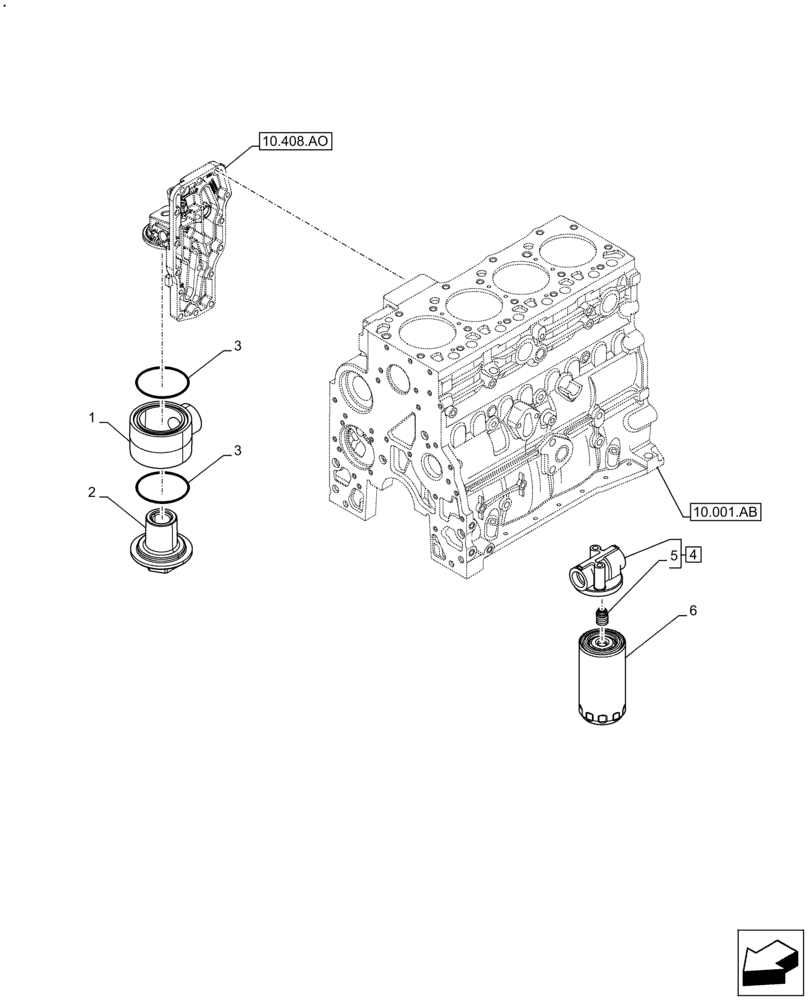

Схема запчастей Case IH F4HFE413E A002 - (10.304.AE) - ENGINE OIL FILTER (10) - ENGINE
10.001.ab
3
6
2
5
1
3
4
10.408.ao
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84528199

FITTING

1шт.

2

2853438

THREADED BUSHING

1шт.

3

2853437

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2шт.

4

84530850

HOUSING

Assy; Incl 5

1шт.

5

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

6

84228510

ENGINE OIL FILTER

1шт.

6

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

with CNH branded oil filter - 84228510

1шт.
