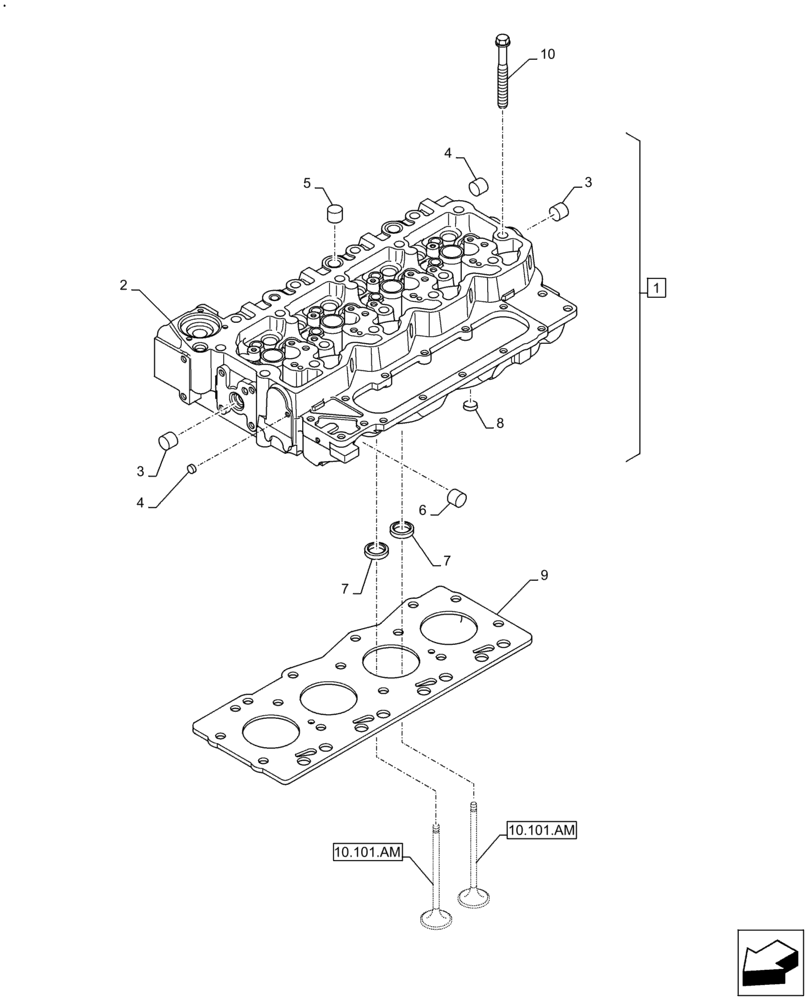

Запчасти Case IH F4HFE413C A002 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

1

2831261

CYLINDER HEAD,4 Cylinders

ASSY, Incl 2 - 8

1шт.

2

2831265

CYLINDER HEAD,4 Cylinders

Alternative

1шт.

2

2831266

CYLINDER HEAD,4 Cylinders

Alternative

1шт.

2

47507108R

REMAN-CYLINDER HEAD

F4HFE413C*A002 ENGINE 5801688472 - 47397958 - TIER 4A, Alternative (4/14-)

1шт.

2

47507108C

CORE-HYD CYLINDER

Return Number

1шт.

3

4895085

EXPANSION PLUG,25.74mm

18шт.

4

4895406

EXPANSION PLUG,9.8mm OD

10шт.

5

4895089

PLUG,0.886" L

14шт.

6

4895407

EXPANSION PLUG,38.28mm OD

2шт.

7

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

For Cylinder Head 2831265

8шт.

7

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

For Cylinder Head 2831265

8шт.

7

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

For Cylinder Head 2831266

16шт.

8

4893036

PIPE PLUG,3/4"-14 NPTF

3шт.

9

2830707

CYLINDER HEAD GASKET,1.15mm Thk

1.15 mm

1шт.

9

2830706

CYLINDER HEAD GASKET,1.25mm Thk

1.25 mm

1шт.

10

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12 x 130

8шт.

10

4891025

SCREW,Flng, M12 x 1.75 x 150mm

M12 x 150

10шт.
