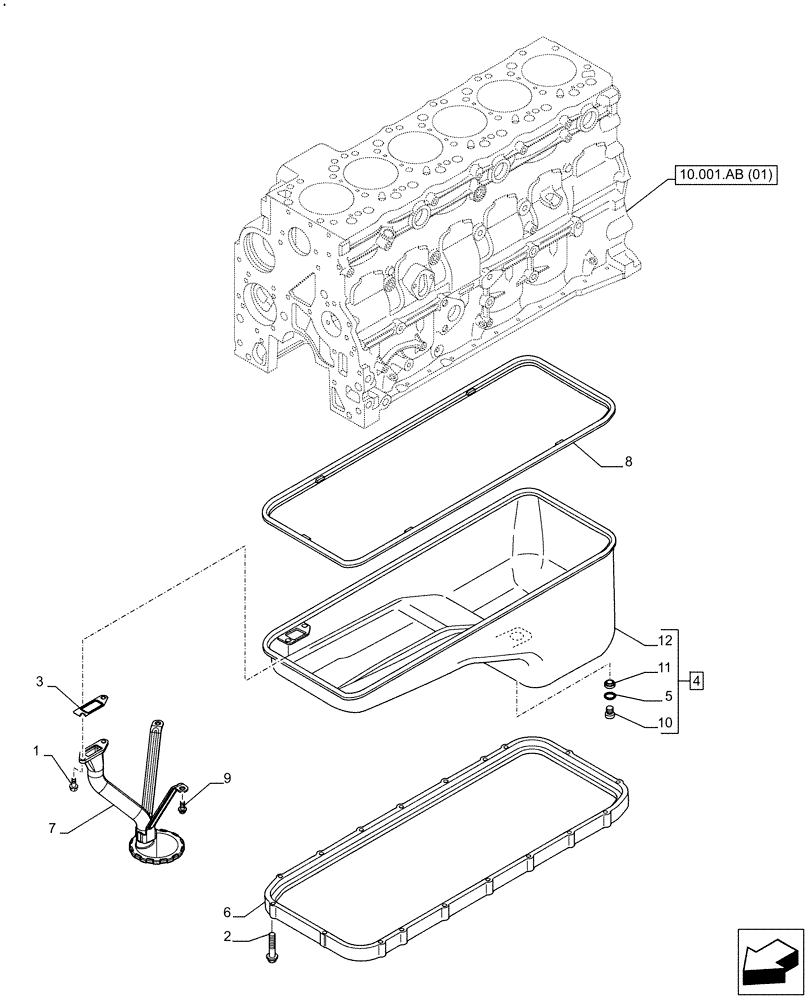

Запчасти Case IH F4HFA613K E003 (10.102.AP) - ENGINE, OIL PAN (10) - ENGINE

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

4898036

ENGINE OIL PAN

ASSY, Incl 5, 10 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING; Incl in 4

1шт.

6

4897858

SPACER

1шт.

7

2853306

SUCTION PIPE

1шт.

8

47590191

GASKET

1шт.

9

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

10

NSS

NOT SOLD SEPARAT

PLUG; Incl in 4

1шт.

11

NSS

NOT SOLD SEPARAT

BUSH; Incl in 4

1шт.

12

NSS

NOT SOLD SEPARAT

PAN; Incl in 4

1шт.
