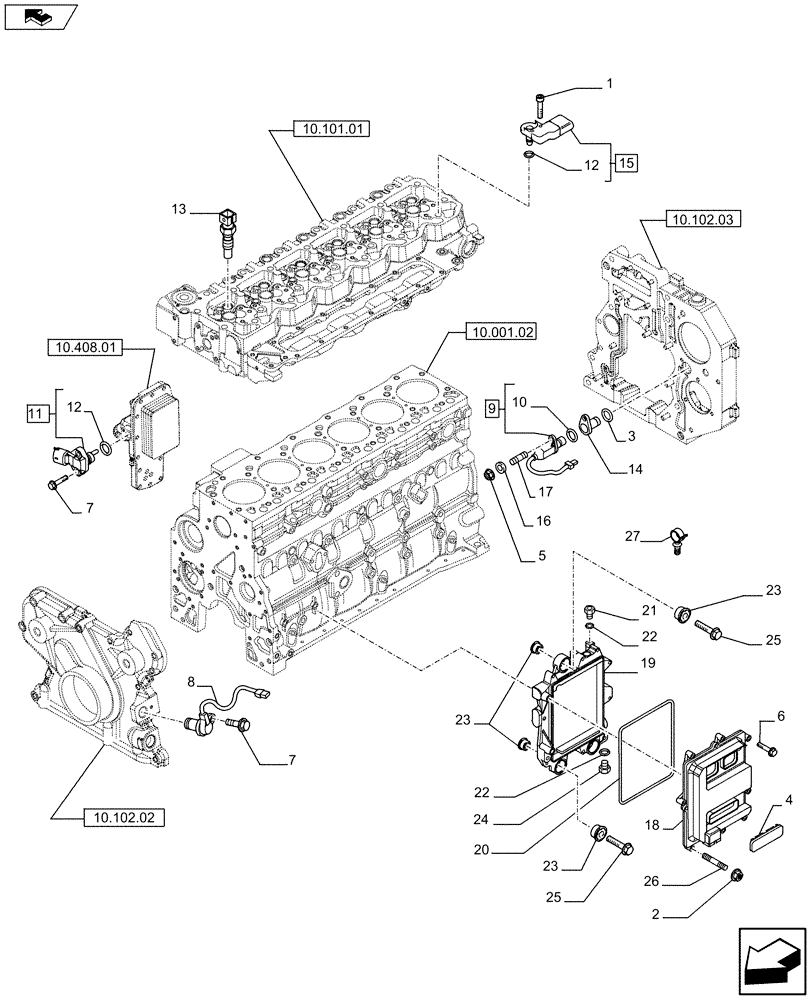

Запчасти Case IH F4HFA613A E002 (55.640.01) - ELECTRONIC INJECTION (2854592) (55) - ELECTRICAL SYSTEMS

1

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

2

4899057

FLANGE NUT,M6

1шт.

3

17278781

O-RING

M23.5 x 1.7

1шт.

4

2852825

PLUG,100mm x 40mm L

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

6

16586021

SCREW,M6 x 30mm

M6 x 30

7шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

4890189

SENSOR

1шт.

9

4890190

SENSOR

- ASSY

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 x 1.78 mm

1шт.

11

2859674

SENSOR,Oil Pressure

- ASSY

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

13

4897224

SENSOR

Temperature

1шт.

14

504356683

PIPE COUPLING

1шт.

15

2852821

SENSOR

Sensor, Air Pressure & Temperature, 4 wire

1шт.

16

4899124

WASHER

1шт.

17

504388426

STUD

1шт.

18

2854594

ECU

1шт.

18

2854594R

REMAN-MODULE

1шт.

18

2854594C

CORE-MODULE

Return Number

1шт.

19

2854596

BRACKET

1шт.

20

2854079

GASKET,6.45mm Thk

1шт.

21

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

23

98498817

ISOLATOR

6шт.

24

4890964

FITTING,M12 x 1.5

1шт.

25

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

26

2854593

STUD

1шт.

27

2852486

CABLE CLIP

2шт.
