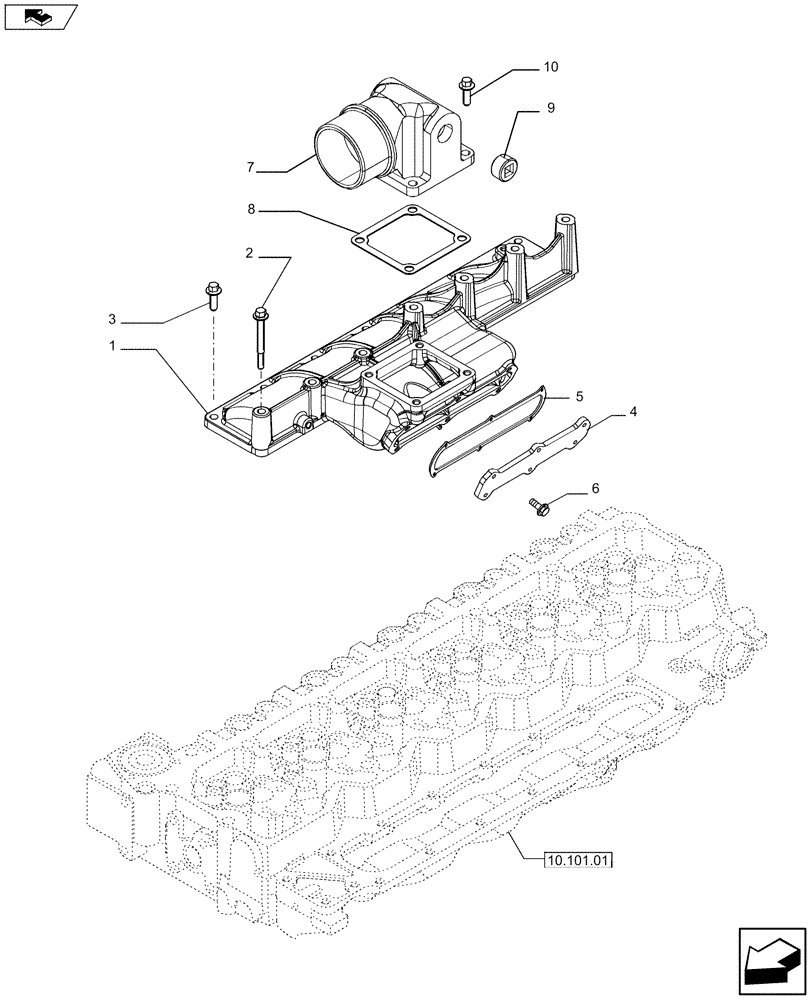

Запчасти Case IH F4HFA613A E002 (10.254.01) - INTAKE MANIFOLD - ENGINE AIR INTAKE (2854533 - 2854979) (10) - ENGINE

1

2854534

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

3шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

7шт.

4

2854700

COVER

1шт.

5

2854701

GASKET,0.8mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

6шт.

7

4895424

INLET MANIFOLD

1шт.

8

4899921

GASKET,1.2mm Thk

1шт.

9

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

10

16586424

SCREW,M8 x 25mm

4шт.
