/ / / / / / / / (10.101.02[02]) - HEAD COVER, FROM SERIAL NUMBER 1462088
Запчасти Case IH F4HFA613A E002 (10.101.02[02]) - HEAD COVER, FROM SERIAL NUMBER 1462088 (10) - ENGINE

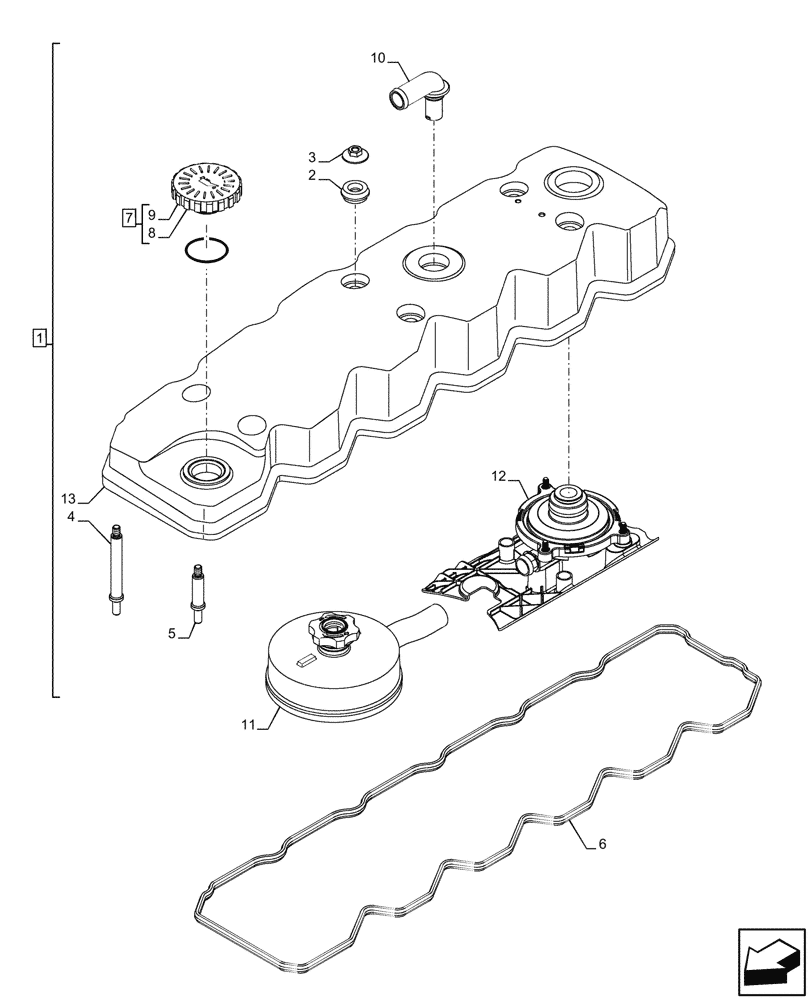

![Схема запчастей Case IH F4HFA613A E002 - (10.101.02[02]) - HEAD COVER, FROM SERIAL NUMBER 1462088 (10) - ENGINE](https://partsell.ru/storage/images/caseih/5532008.png)
6
8
10
11
4
12
9
13
7
5
2
1
3
1
5802112494
ASSY, Incl 10 - 13
COVER
1шт.
2
504070041
GASKET
6шт.
3
504075125
FLANGE NUT
6шт.
4
504088235
SCREW
4шт.
5
504129243
SCREW
2шт.
6
504070038
GASKET
1шт.
7
504262827
CAP
ASSY, Incl 8, 9
1шт.
8
98412146
GASKET
1шт.
9
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
1шт.
10
504153152
TUBE
1шт.
11
5802276802
VALVE
1шт.
12
5802112496
FILTER
1шт.
13
NSS
NOT SOLD SEPARAT
Head cover, Incl in 1
1шт.
