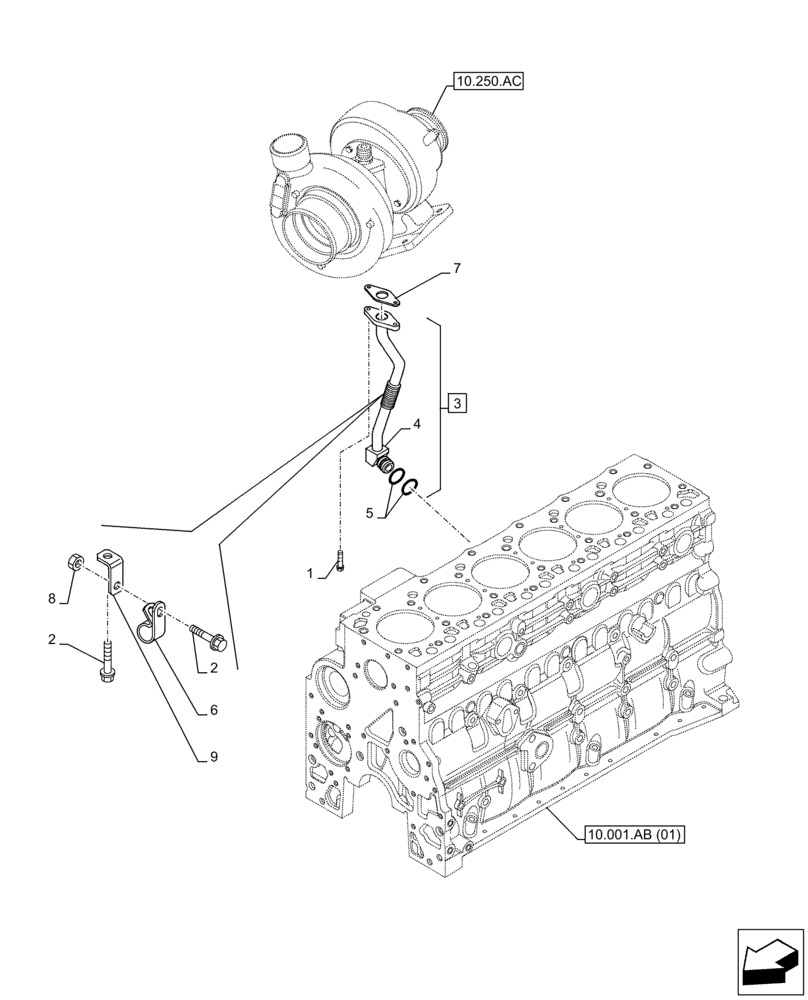

Запчасти Case IH F4HE9687T J104 (10.250.AE) - TURBOCHARGER, RETURN LINE (10) - ENGINE

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

M8 x 1.25 x 25

2шт.

2

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

3

47547973

TUBE

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Incl in 3

1шт.

5

2852801

O-RING

2шт.

6

4896893

CLAMP,20mm W

1шт.

7

4891288

GASKET,0.8mm Thk

1шт.

8

4899003

FLANGE NUT,M8 x 1.25

1шт.

9

2852390

BRACKET

1шт.
