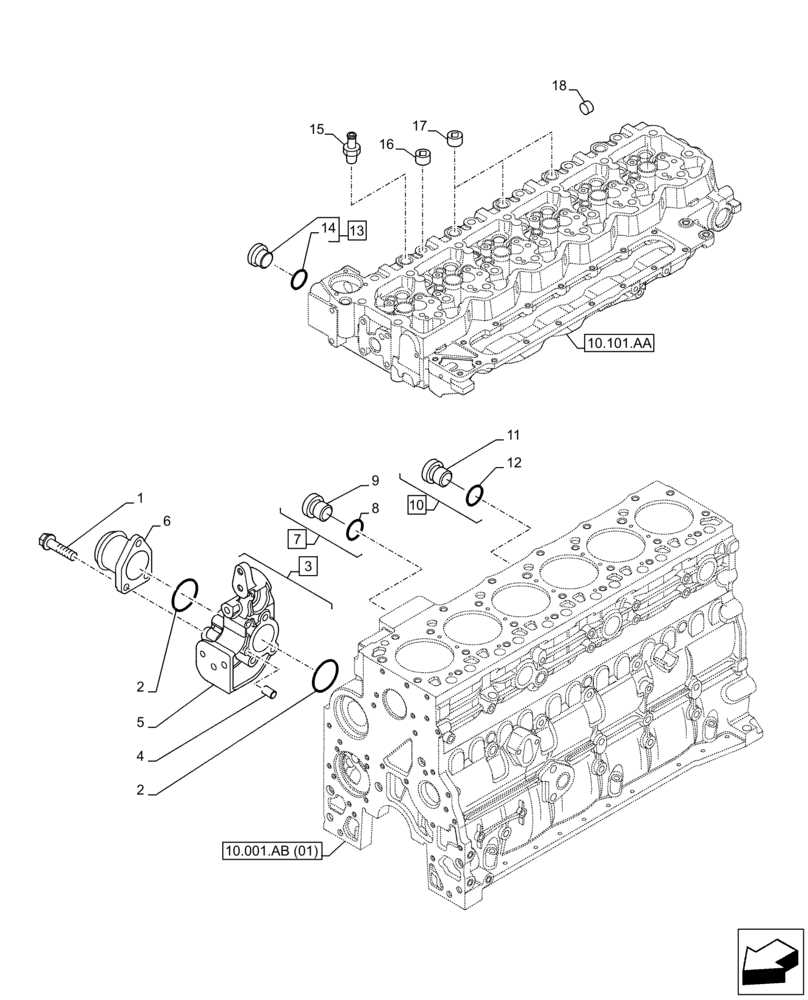

Запчасти Case IH F4HE9687S J106 (10.400.AE) - WATER PUMP, INLET MANIFOLD (10) - ENGINE

1

2852923

SCREW

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

ASSY, Incl 4, 5

1шт.

4

2852393

HYD CONNECTOR

HYD CONNECTOR; Incl in 3

1шт.

5

4895576

DOWEL

2шт.

6

2852922

ELBOW

1шт.

7

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 8, 9

2шт.

8

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

9

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

10

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 11, 12

1шт.

11

4895081

PLUG,M22 x 1.5 x 16.5mm L

PLUG; Incl in 10

1шт.

12

4895082

O-RING,19.3mm ID x 2.2mm Width

1шт.

13

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

14

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

15

4896924

HYD CONNECTOR

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

16

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

2шт.

17

4895078

PIPE PLUG,1/2"-14

3шт.

18

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.
