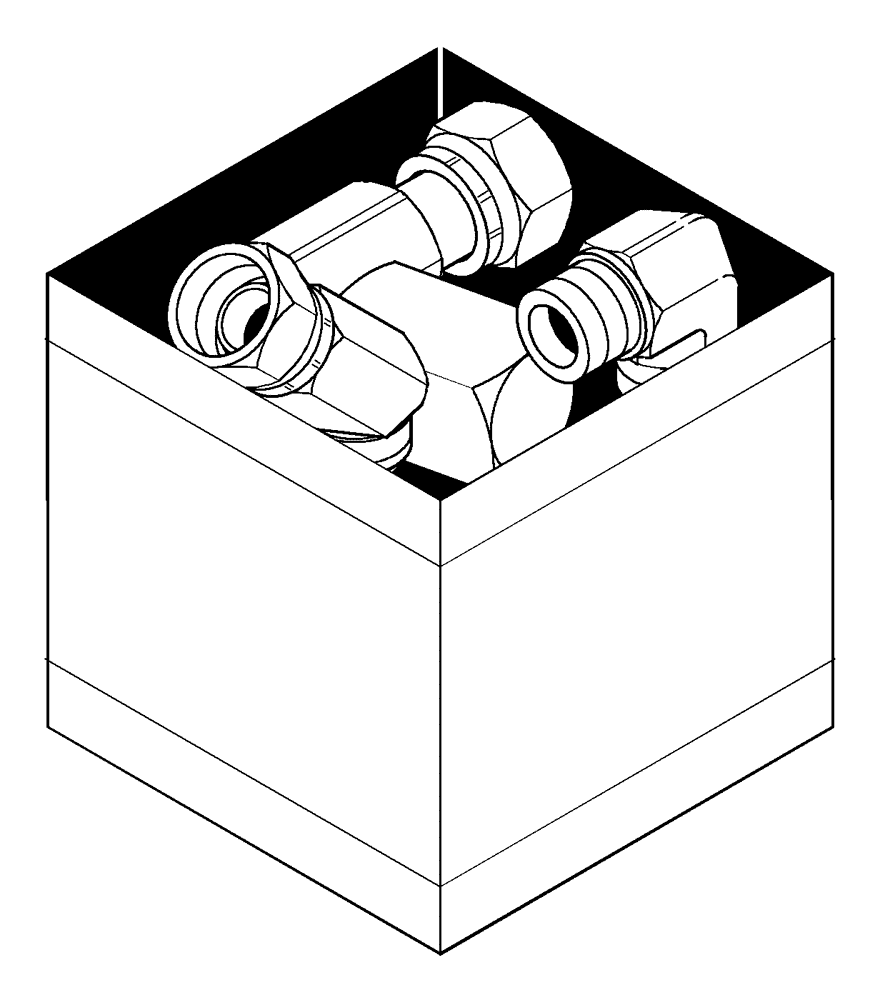

Запчасти Case IH F4HE9687S J100 (0.02.2) - ENGINE BLOCK GASKET KIT

84214946

GASKET KIT

1шт.

1

2853133

GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk

1шт.

2

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

3

4899072

O-RING,1.6mm Thk x 8.1mm ID

3шт.

4

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

5

4895039

EXPANSION PLUG,M17.73

2шт.

6

4895038

EXPANSION PLUG,M58.06

6шт.

7

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

8

4890700

GASKET,1.21mm Thk

1шт.

9

4890088

O-RING,44mm ID x 3mm Width

1шт.

10

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

11

17290581

O-RING,72.62mm ID x 2.34mm Width

1шт.

12

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

13

2852885

GASKET,1.2mm Thk

1шт.

14

4898301

GASKET,0.42mm Thk

1шт.

15

2830156

O-RING,70 Duro, M2.62 Thk

1шт.

16

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

17

2853695

O-RING

1шт.

18

2830972

GASKET,2.3mm Thk

1шт.

19

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

20

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

21

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

22

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

23

4895121

GASKET

1шт.

24

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

25

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

26

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

27

4895089

PLUG,0.886" L

11шт.

28

84817012

1шт.

29

2831317

GASKET,0.9mm Thk

1шт.

30

2830559

GASKET,0.5mm Thk

1шт.

31

4896409

GASKET,1.55mm Thk

1шт.

32

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

33

4895584

O-RING,0.924mm ID x 0.103mm Width

2шт.
