Запчасти Case IH F4HE9687N J104 (10.101.AA) - CYLINDER HEAD (10) - ENGINE

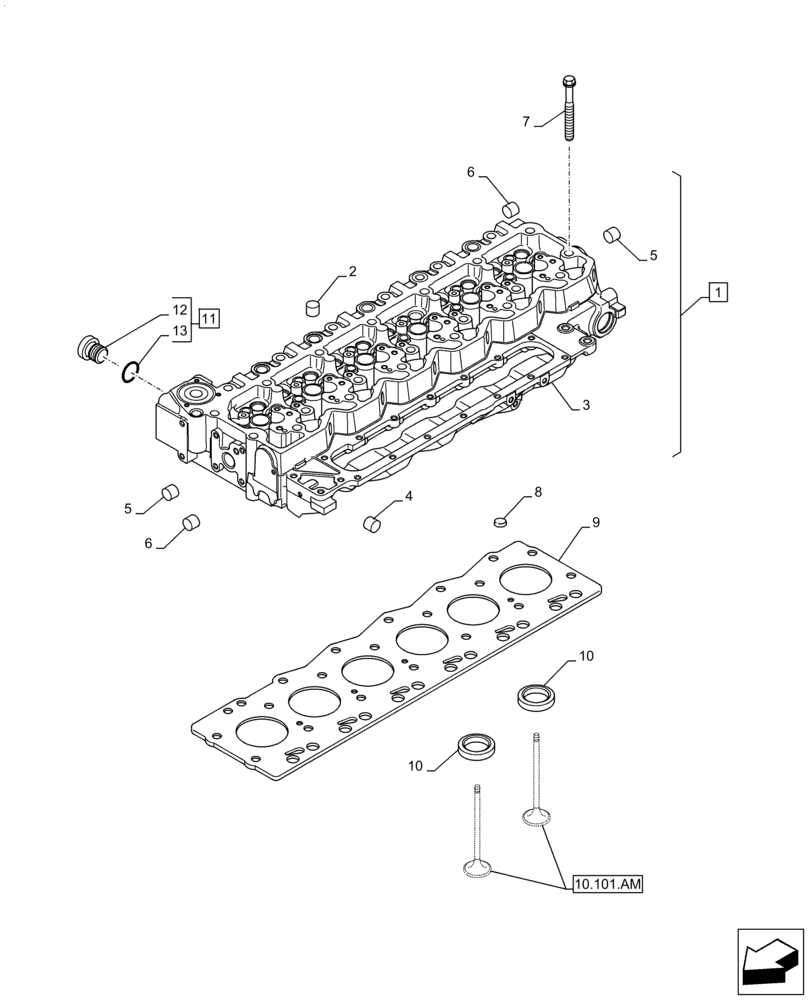

Схема запчастей Case IH F4HE9687N J104 - (10.101.AA) - CYLINDER HEAD (10) - ENGINE
4
12
2
10.101.am
6
6
11
13
5
10
3
9
5
10
1
7
8

Артикул

Название

Примечание

Количество

1

2831274

CYLINDER HEAD,6 Cylinders

ASSY, Incl 2 - 6

1шт.

2

4895089

PLUG,0.886" L

11шт.

3

2831279

CYLINDER HEAD,6 Cylinders

Alternative, Incl in 1

1шт.

3

2831278

CYLINDER HEAD,6 Cylinders

Alternative, Incl in 1

1шт.

4

4895407

EXPANSION PLUG,38.28mm OD

2шт.

5

4895085

EXPANSION PLUG,25.74mm

13шт.

6

4895406

EXPANSION PLUG,9.8mm OD

7шт.

7

4891024

BOLT,Flng, M12 x 1.75 x 130mm

12шт.

7

4891025

SCREW,Flng, M12 x 1.75 x 150mm

14шт.

8

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

9

2830705

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

9

2830704

CYLINDER HEAD GASKET,1.25mm Thk

1шт.

10

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

10

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

assy, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

13

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

Выбрано товаров: 17
